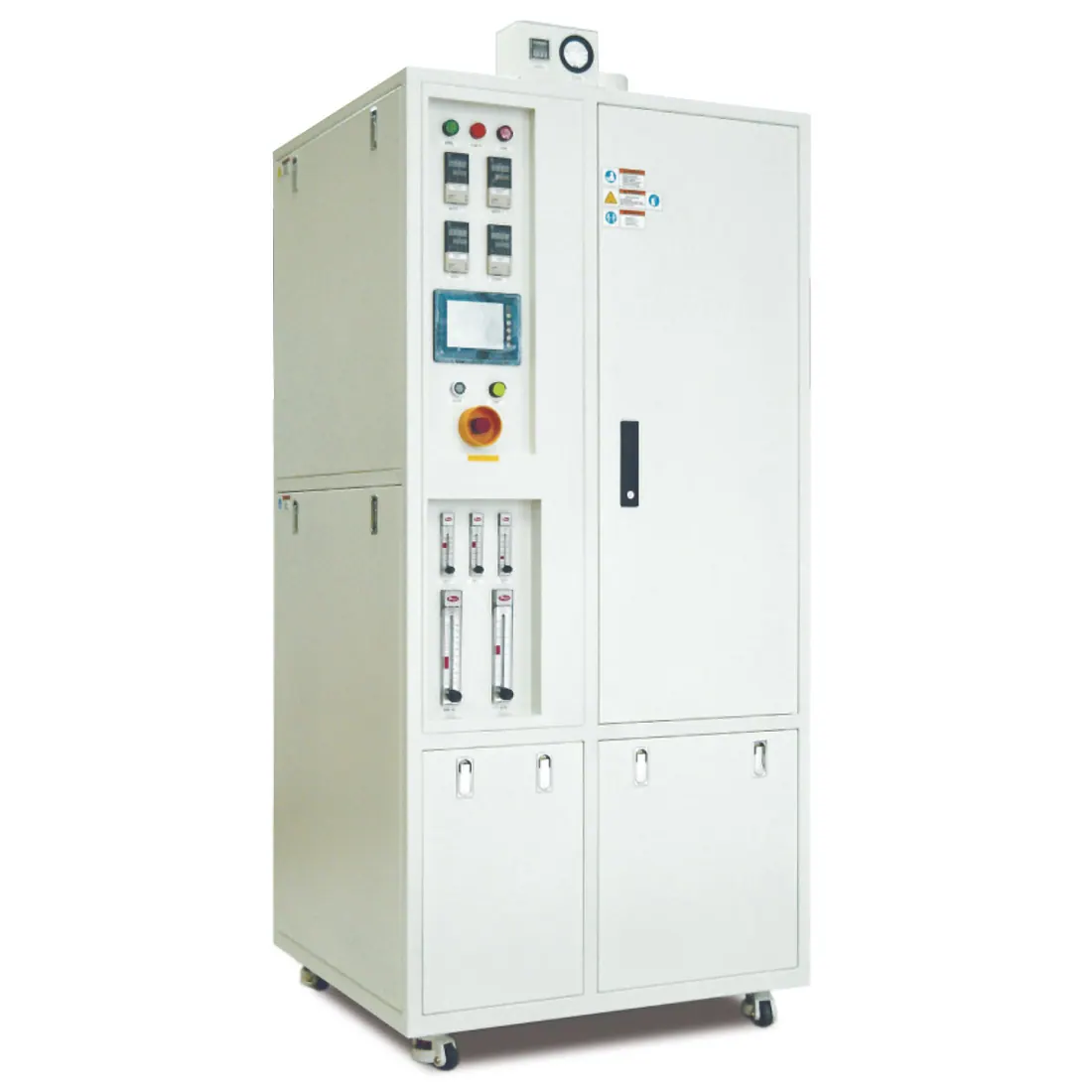

SBW 200-C
Brand: Semian | Category: Scientific & Laboratory Equipment
Burn and wet scrubber rated for 400 SLM with an 8 kW heater stage and an NW80 exhaust connection. Single phase supply and a PVC union waste water drain make it straightforward to connect into existing fab utilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Total gas treatment volume | 400 SLM |
| Gas inlet | NW40, 1 to 4 port |
| Gas exhaust | NW80, 1 port, -25 to -75 mmH2O |
| Electrical power consumption | 9 kW, heater 8 kW |
| Voltage/phase | 208V 1N~ 50Hz 60A |
| Specification | Dimensions 900 (W) x 850 (D) x 2060 (H), weight 410 kg |
