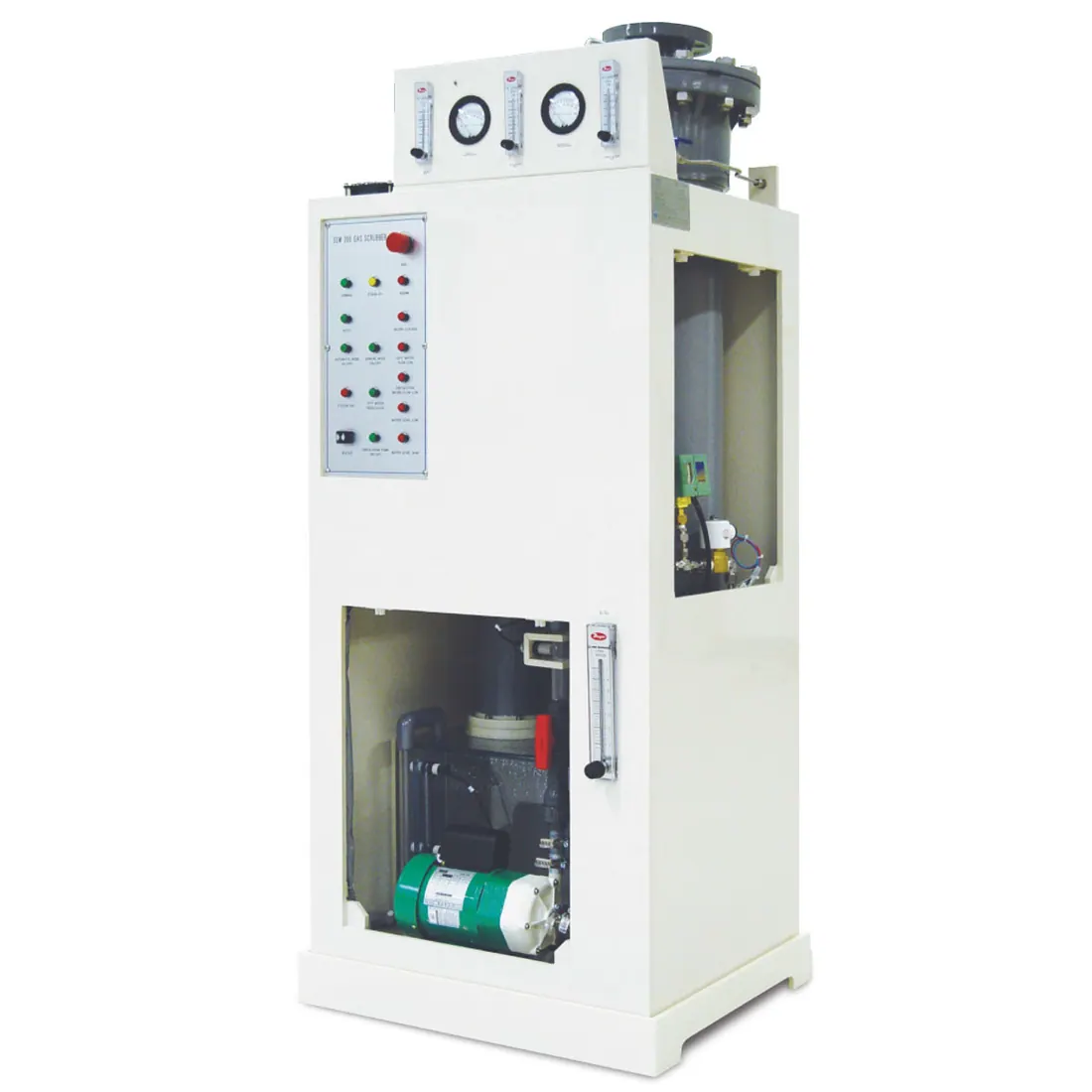

SSW 200-K
Brand: Semian | Category: Scientific & Laboratory Equipment
Wet scrubber rated for 200 SLM with matched 65A flange inlet and outlet, so it drops into an existing exhaust run. Nitrogen supply is optional, power draw stays under 300 W and waste water leaves through a VP40 union at 200 kg installed weight.
Technical Specifications
| Parameter | Value |
|---|---|
| Total gas treatment volume | max 200 SLM |
| Gas inlet | 65A flange, 1 port |
| Gas exhaust | 65A flange, 1 port, -25 to -75 mmH2O |
| Electrical power consumption | max 300 W |
| Voltage/phase | 208 to 220 VAC, 1 phase, 60 Hz |
| Specification | Dimensions 400 (W) x 500 (D) x 1500 (H), weight 200 kg |
