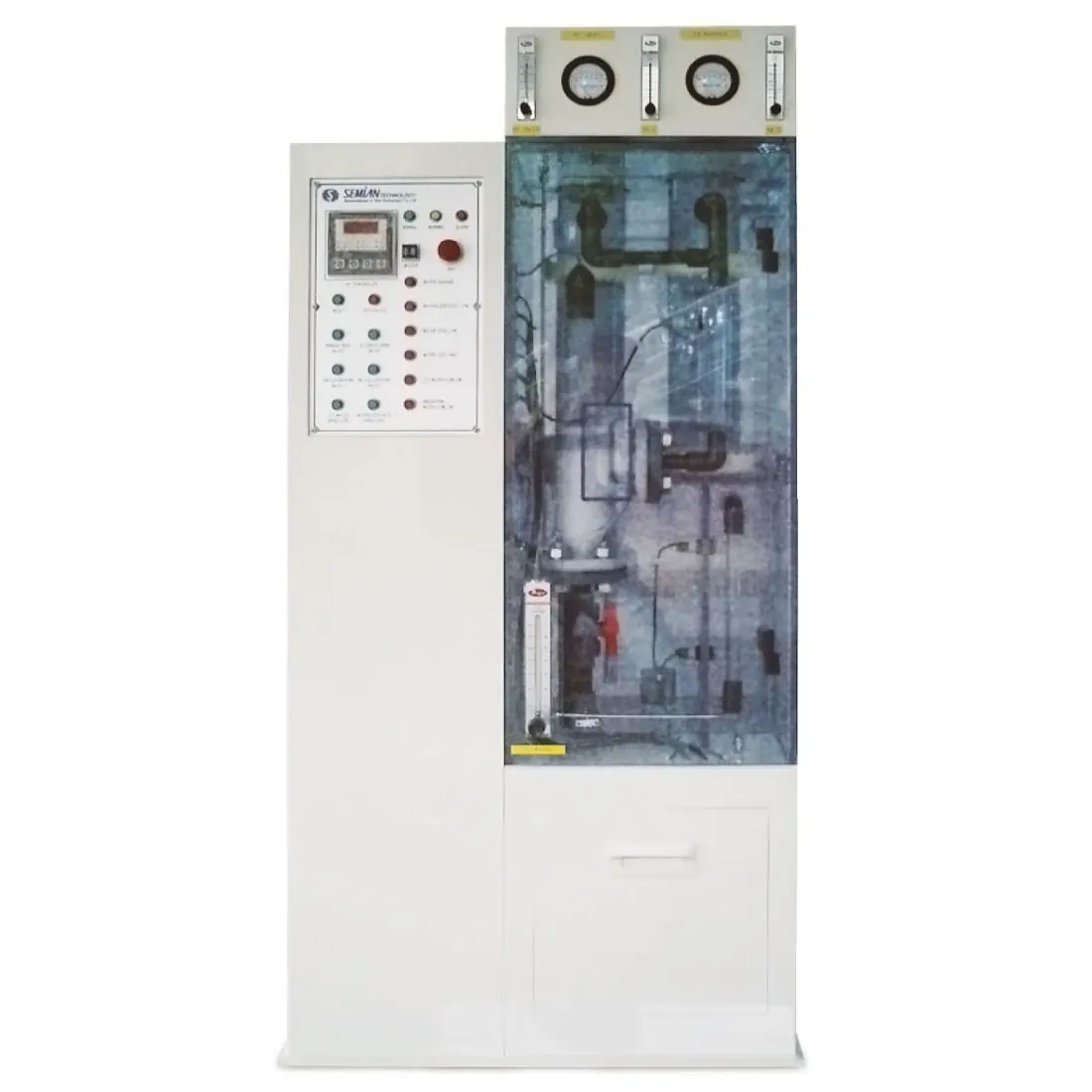

SSW 200-E
Brand: Semian | Category: Scientific & Laboratory Equipment
Wet scrubber for water soluble process exhaust, drawing under 300 W and needing only water and nitrogen connections. The 400 by 500 mm footprint and 100A flange inlet suit point of use installation next to a process tool.
Technical Specifications
| Parameter | Value |
|---|---|
| Total gas treatment volume | max 200 SLM |
| Gas inlet | 100A flange, 1 port |
| Gas exhaust | 65A flange, 1 port, -25 to -75 mmH2O |
| Electrical power consumption | max 300 W |
| Voltage/phase | 208 to 220 VAC, 1 phase, 60 Hz |
| Specification | Dimensions 400 (W) x 500 (D) x 1500 (H), weight 200 kg |
