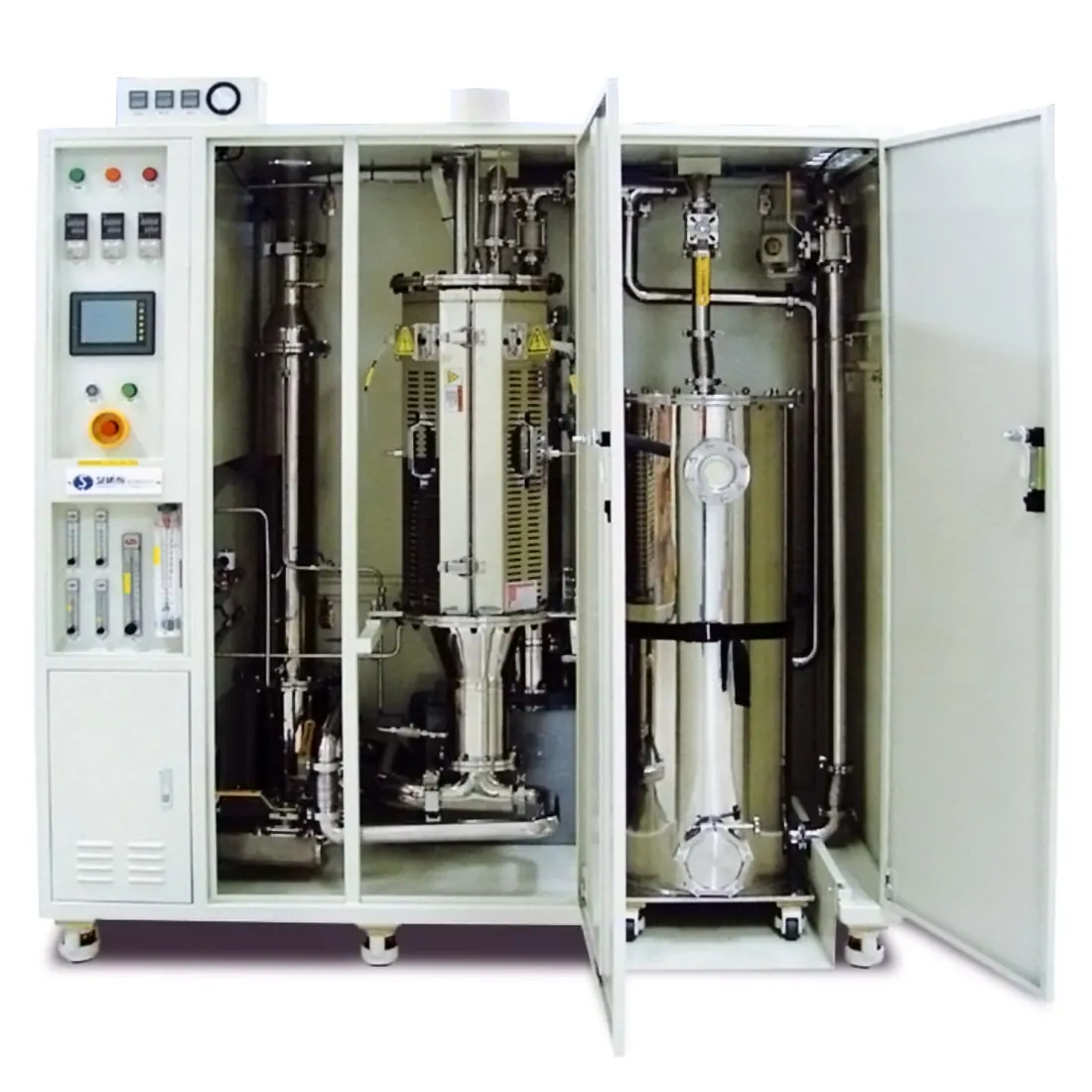

SBD 200-S
Brand: Semian | Category: Scientific & Laboratory Equipment
Combined burn and dry scrubber rated for 400 SLM, pairing a heated reaction stage with a 100 litre adsorbent canister. City water, process cooling water and clean dry air connections are provided for multi chamber tool exhaust.
Technical Specifications
| Parameter | Value |
|---|---|
| Total gas treatment volume | max 400 SLM |
| Canister volume | 100 litre |
| Gas inlet | NW40 flange, 1 to 3 port |
| Electrical power consumption | max 7.5 kW |
| Voltage/ampere/phase | 208 to 220 VAC, 30A, 3 phase, 60 Hz |
| Specification | Dimensions 1800 (W) x 900 (D) x 1800 (H), weight 560 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Semian equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
