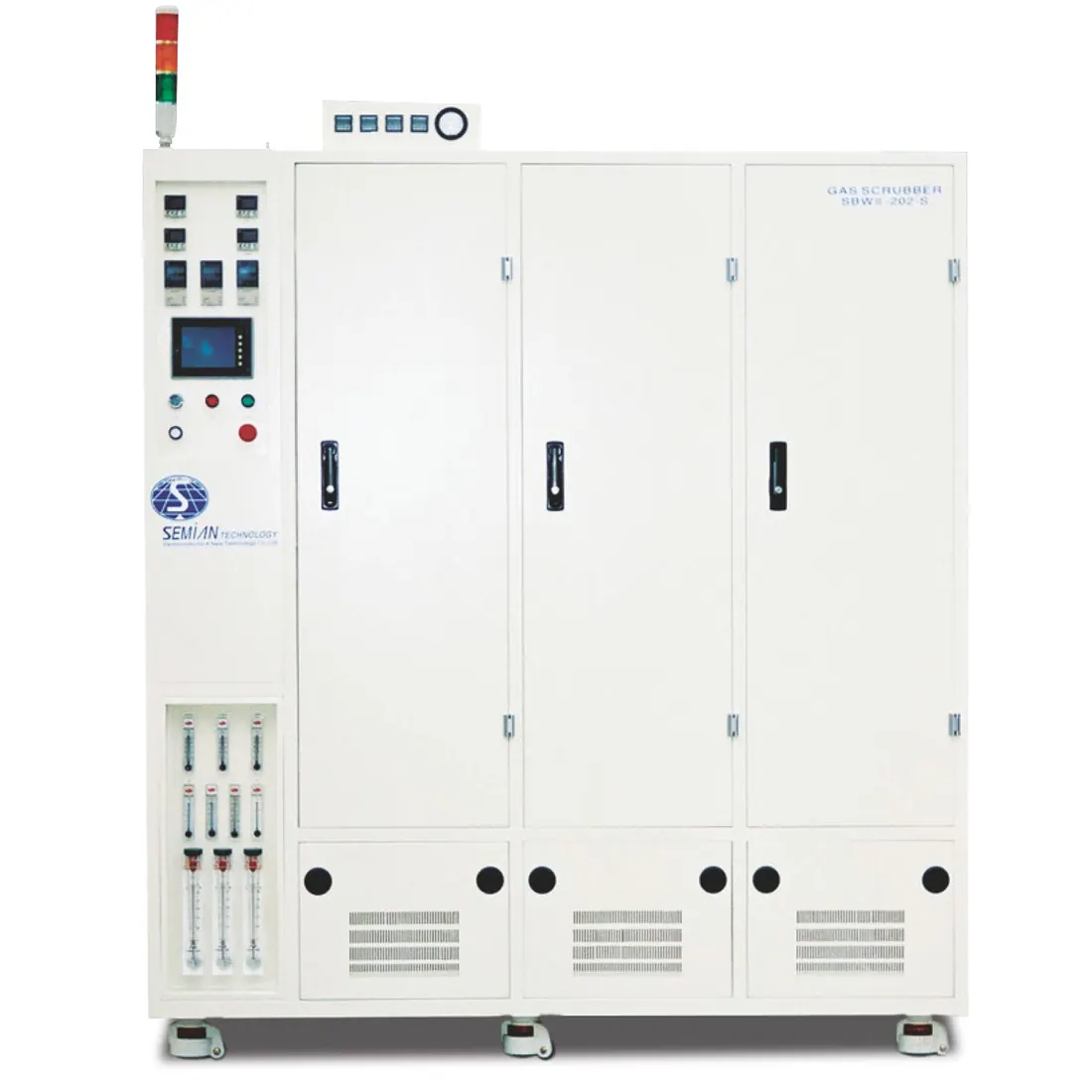

SBW III_202_S
Brand: Semian | Category: Scientific & Laboratory Equipment
High capacity burn and wet scrubber handling 1200 SLM total flow with a heating chamber running at 800 to 850 degrees C. Hydrogen treatment is rated to 120 SLM, which suits epitaxy and other high hydrogen processes.
Technical Specifications
| Parameter | Value |
|---|---|
| Total gas treatment volume | 1200 SLM, H2 treatment up to 120 SLM |
| Heating chamber temperature | 800 to 850 degrees C |
| Inlet port | ISO 63 flange, 1 port |
| Outlet port | ISO 200 flange, 1 port, -25 to -75 mmH2O |
| Electrical power | 20 kW, 208 VAC, 3 phase, rating current 75 A |
| Specification | Dimensions 1800 (W) x 900 (D) x 2000 (H), weight 1200 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Semian equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
