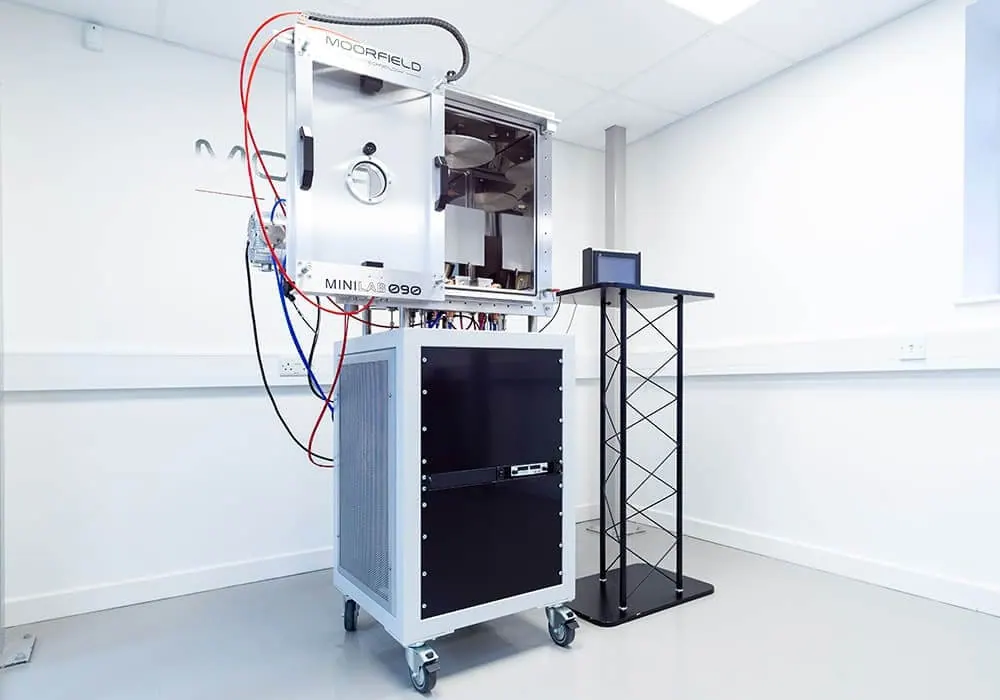

MiniLab 090
Brand: Moorfield Nanotechnology | Category: Nanotechnology
A glovebox compatible modular PVD system with front and rear door configuration, aimed at air sensitive materials and protected transfer. It is used for perovskite, OLED and organic optoelectronic thin film research.
Technical Specifications
| Parameter | Value |
|---|---|
| Base pressure | 5x10-7 mbar |
| Maximum substrate size | 8 inch (200 mm) |
| Specification | Glovebox compatible with front and rear door configuration |
| Substrate heating | up to 800 deg C with SSIC heater |
| Specification | Optional load lock for up to 8 substrates, dual chamber available |
| Control | PC with IntelliDep software |
