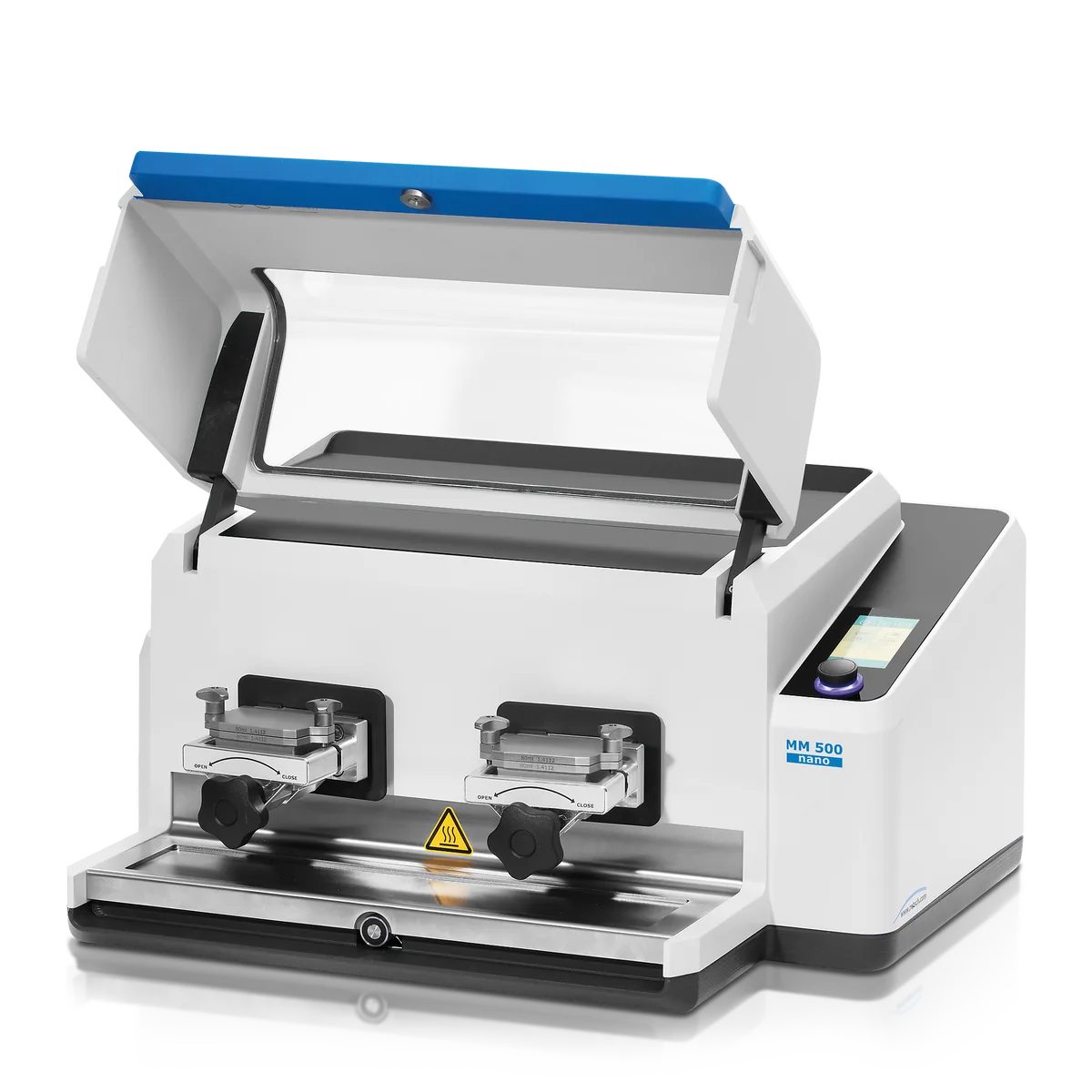

MM 500 nano: Mixer Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Mixer mill developed for producing particles in the nanometre range from batches of up to 2 x 45 ml, reaching about 0.1 µm. It supports dry, wet and cryogenic grinding as well as mechanochemistry and mechanical alloying, and the larger jar volume distinguishes it from the MM 400.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Final fineness | ~ 0.1 µm |
| Batch size / feed quantity | max. 2 x 45 ml |
| Vibrational frequency | 3 - 35 Hz (180 - 2100 min-1) |
| Typical mean grinding time | 30 s - 2 min |
| Grinding jar sizes | 10 ml / 25 ml / 50 ml / 80 ml / 125 ml |
| Setting of grinding time | digital, 10 s - 8 h |
| Total grinding time | 99 h |
| Electrical supply data | 100-120 V, 50/60 Hz; 200-230 V, 50/60Hz |
| Power connection | 1-phase |
| Power consumption | 750 W |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
