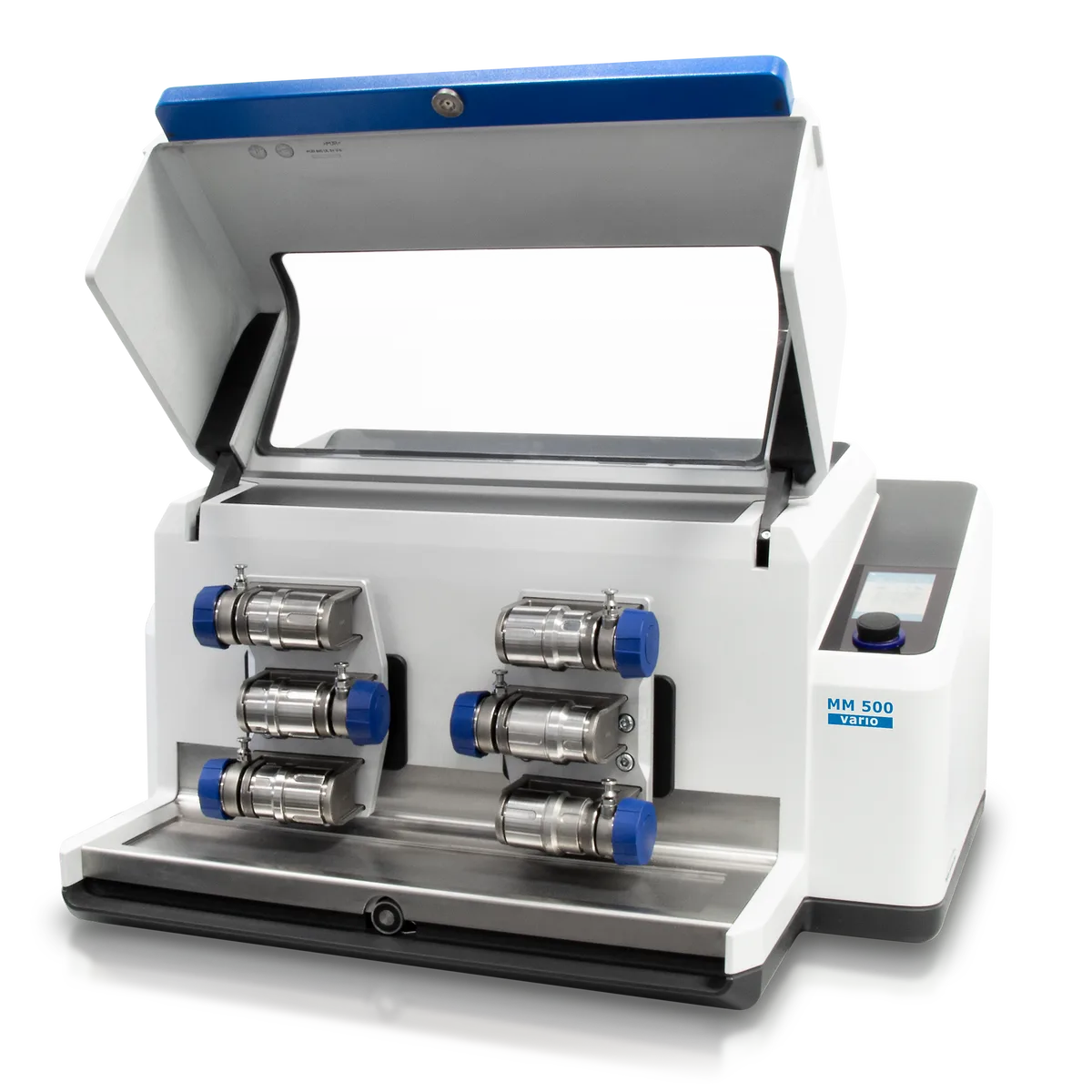

MM 500 vario: Mixer Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Mixer mill with six grinding stations, so up to 50 samples can be processed in one run when adapter racks are used. It is aimed at laboratories with a high sample count rather than a single demanding sample, and covers mechanochemistry, homogenisation, size reduction and cryogenic grinding.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Final fineness | ~ 5 µm |
| Batch size / feed quantity | max. 6 x 20 ml |
| Vibrational frequency | 3 - 35 Hz (180 - 2100 min-1) |
| Typical mean grinding time | 30 s - 2 min |
| Grinding jar sizes | 1.5 ml / 5 ml / 10 ml / 25 ml / 35 ml / 50 ml |
| Setting of grinding time | digital, 10 s - 8 h |
| Total grinding time | 99 h |
| Electrical supply data | 100-120 V, 50/60 Hz; 200-230 V, 50/60Hz |
| Power connection | 1-phase |
| Power consumption | 750 W |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
