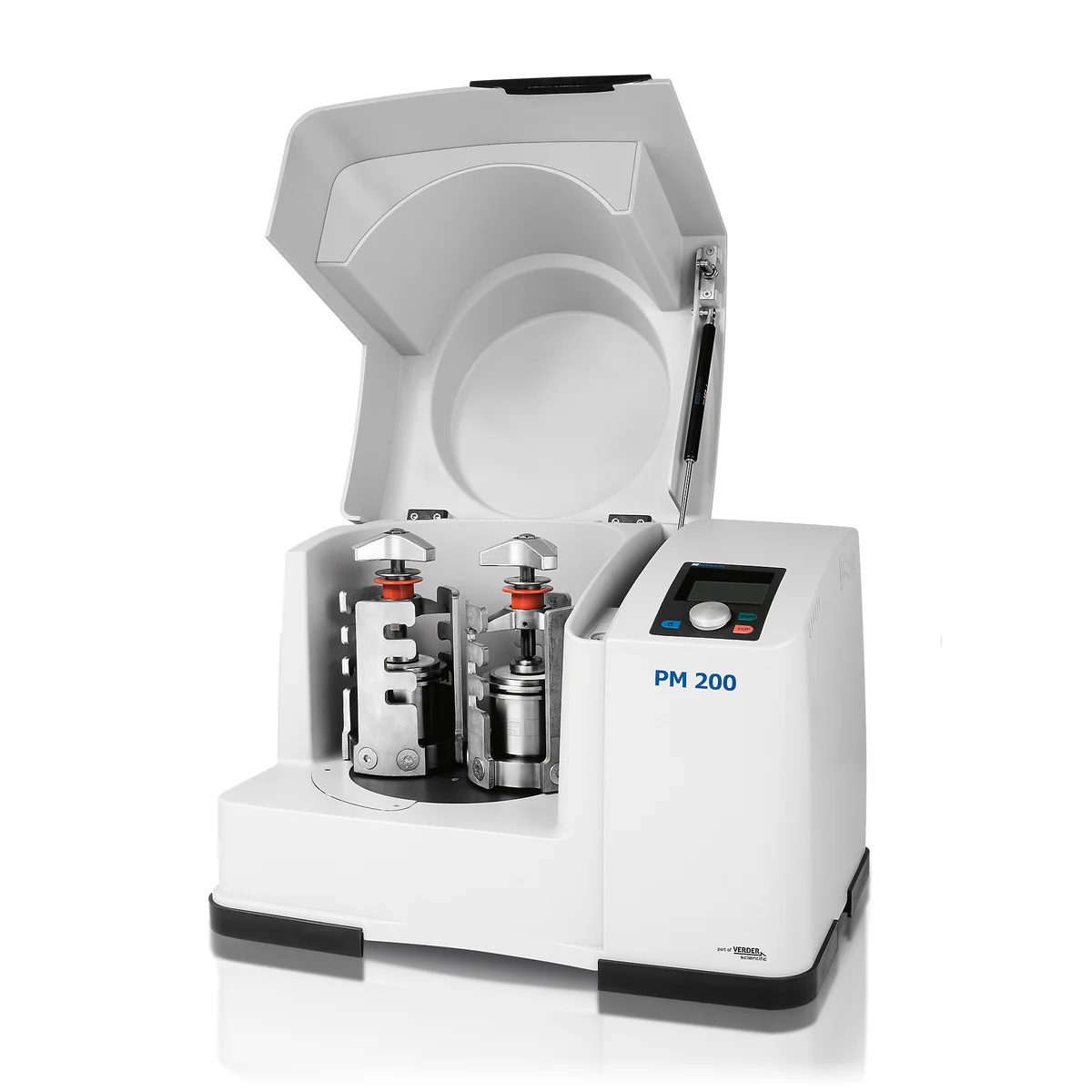

PM 200: Planetary Ball Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Two station planetary ball mill for grinding two samples in parallel under identical conditions, or one sample with a counterweight. Jar sizes go up to 125 ml and the mill reaches below 1 µm, and 0.1 µm for colloidal grinding. Input energy can be measured, which supports mechanochemical work.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 4 mm |
| Final fineness | 1 µm, for colloidal grinding 0.1 µm |
| Batch size / feed quantity | max. 2 x 50 ml |
| Speed ratio | 1 : -2 |
| Sun wheel speed | 100 - 650 min-1 |
| Effective sun wheel diameter | 157 mm |
| G-force | 37.1 g |
| Grinding jar sizes | 12 ml / 25 ml / 50 ml / 80 ml / 125 ml |
| Setting of grinding time | digital, 00:00:01 to 99:59:59 |
| Interval time | 00:00:01 to 99:59:59 |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
