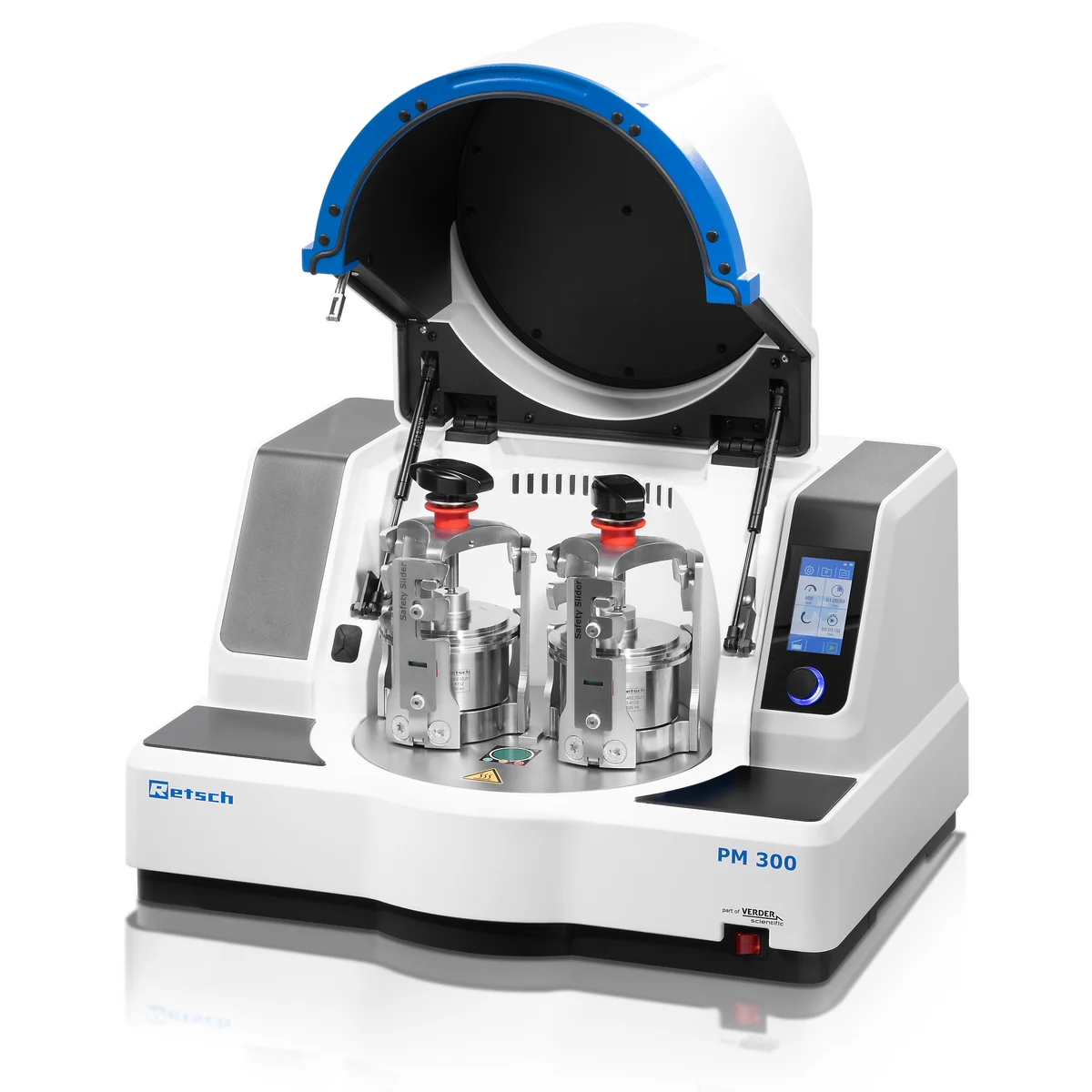

PM 300: Planetary Ball Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Two station planetary ball mill taking jars up to 500 ml, with a higher sun wheel speed and a centrifugal acceleration of 64 g. The larger batch volume and higher energy input suit mechanochemistry and co-crystal screening as well as conventional fine grinding.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 10 mm |
| Final fineness | 1 µm, for colloidal grinding 0.1 µm |
| Batch size / feed quantity | max. 2 x 220 ml |
| Speed ratio | 1 : -2 |
| Sun wheel speed | 50 - 800 min-1 |
| Effective sun wheel diameter | 180 mm |
| G-force | 64 g |
| Grinding jar sizes | 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml |
| Setting of grinding time | digital, 00:00:01 to 99:59:59 |
| Interval time | 00:00:01 to 99:59:59 |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Materials Testing Lab
- PM 400: Planetary Ball Mill
Floor standing planetary ball mill with four grinding stations, taking a maximum batch of 4 x 220 ml, or eight samples with stacked jars. The speed ratio can be set to 1 to minus 2, 1 to minus 2.5 or 1 to minus 3, which changes the balance between impact and friction in the grinding action.
- PM 200: Planetary Ball Mill
Two station planetary ball mill for grinding two samples in parallel under identical conditions, or one sample with a counterweight. Jar sizes go up to 125 ml and the mill reaches below 1 µm, and 0.1 µm for colloidal grinding. Input energy can be measured, which supports mechanochemical work.
- TM 300: Drum Mill and Bond Index Tester
Drum mill for dry and wet grinding of soft, hard, brittle and fibrous material, with drums from 5 to 43.3 litres. Fitted with the ball or rod module it also serves as a Bond Index Tester, which is the standard way to quantify the grindability of ores and minerals ahead of plant design.
