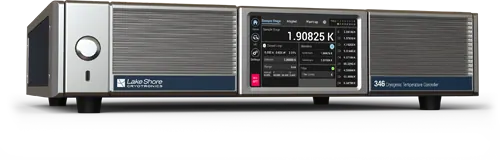

Model 346 Cryogenic Temperature Controller
Brand: Lake Shore | Category: Nanotechnology
The Model 346 is a cryogenic temperature controller with 10 sensor inputs in its base configuration, expandable to 26 inputs using option cards. It covers 300 mK to 1500 K and provides 400 W of total heater power. It is used to measure and control temperature across several zones at once.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor inputs | 10 in the base configuration, 2 dedicated (inputs A and B) plus 8 rapidly scanned (C1 to C4 and D1 to D4) |
| Option cards | maximum of 4 installed, 3401 RTD/diode card adds 4 sensors, 3402 thermocouple card adds 2 sensors |
| Supported sensors | resistive temperature devices (RTDs) up to 100 kΩ, diodes up to 2.5 V and thermocouples |
| Update rate | 100 ms per input, varying to 400 ms when all sensors in a scanned group of 4 are active |
| Excitation | 7 RTD current ranges between 100 nA and 1 mA, 10 µA for diodes |
| Pre-installed standard curves | PT-100, RX-102A, RX-103A, RX-202A, DT-670, Type E and Type K |
