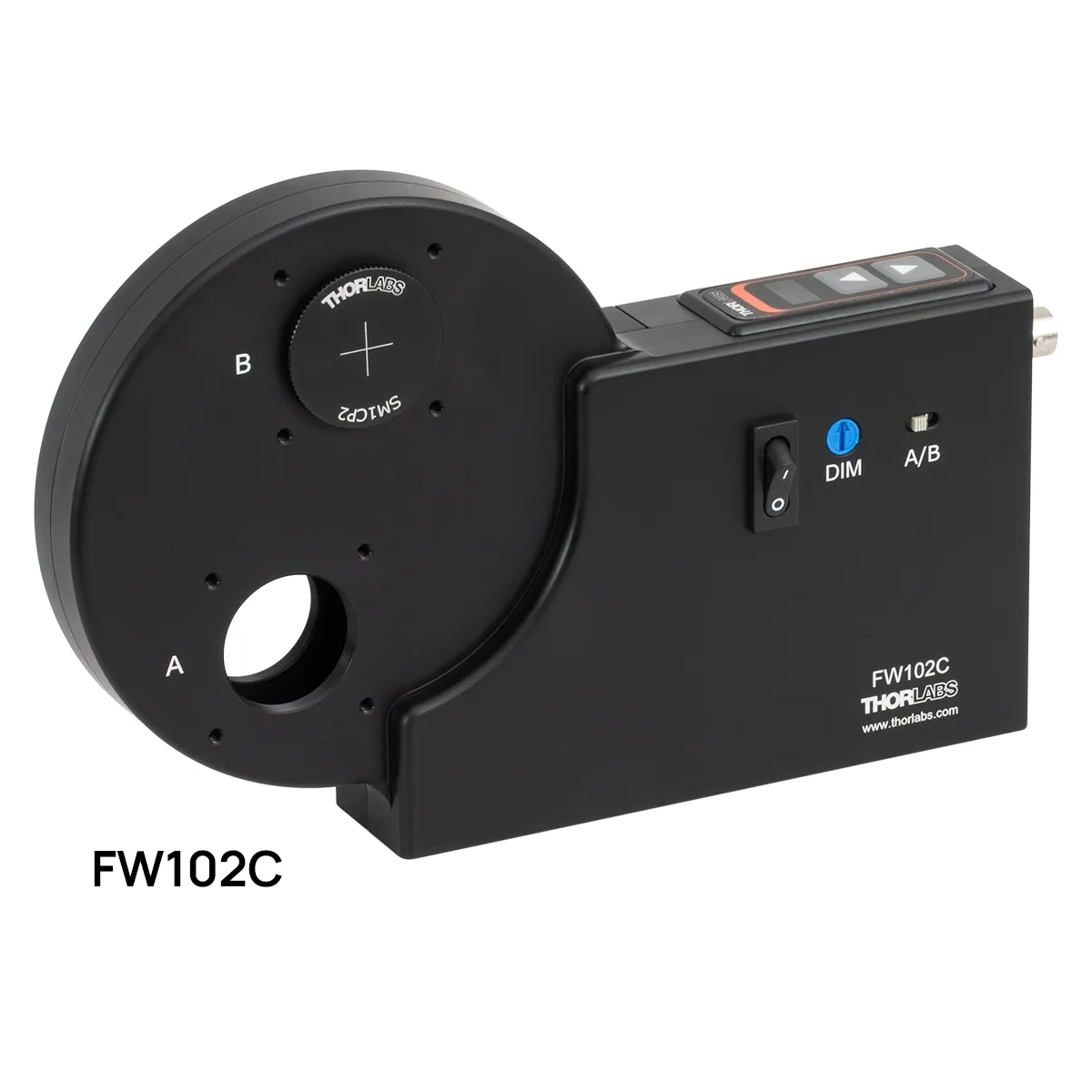

Motorized Filter Wheels, Stepper Motor Driven (FW102C and FW212C)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Stepper driven filter wheels with an integrated controller, taking six one inch filters or twelve half inch filters. Filters can be changed by hand at the housing or driven remotely over USB, RS-232 or a BNC trigger for automated measurement sequences.
Technical Specifications
| Parameter | Value |
|---|---|
| FW102C | 6 slots for 1" filters, FW212C: 12 slots for 1/2" filters |
| Access time to adjacent locations | less than 1 s (FW102C), less than 0.5 s (FW212C) |
| Accuracy and repeatability | plus or minus 2 degrees typical |
| Compatible filter thickness | up to 0.25" (6.35 mm) |
| Clear aperture | 0.90" (22.9 mm) on FW102C, 0.40" (10.2 mm) on FW212C |
| Interfaces | USB, RS-232 and BNC trigger; expected cycles 1.5 x 106 minimum |
