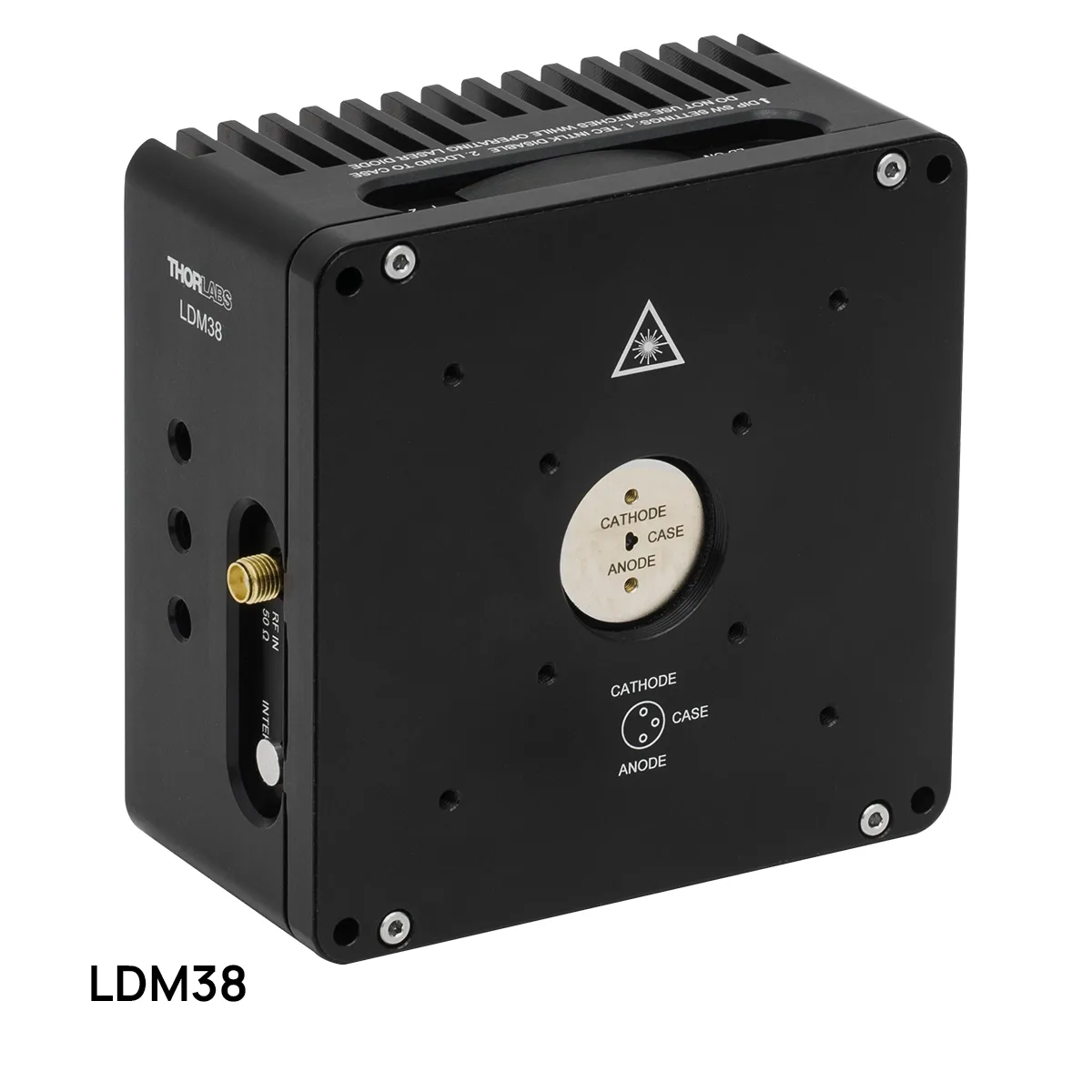

LDM Series Temperature-Controlled Mounts for TO-Can Laser Diodes
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Laser diode sockets with an integrated thermoelectric cooler for 3.8 mm, 5.6 mm and 9.0 mm TO can packages. An internal bias-T allows RF modulation of the diode current, and the housing threads into SM1 lens tubes and 30 mm or 60 mm cage systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Supported packages | 3.8 mm, 5.6 mm and 9.0 mm TO cans |
| Heating and cooling capacity | 8 W |
| Specification | Integrated bias-T allows RF modulation of laser diode current up to 600 MHz |
| Maximum laser current | 1 A (LDM38) or 2 A (LDM56, LDM56F, LDM90) at 25 C ambient |
| Specification | Switch selectable pin configurations A to H depending on model |
| Specification | SM1 threading, 30 mm and 60 mm cage taps, 1/4"-20 (M6) post mounting |
