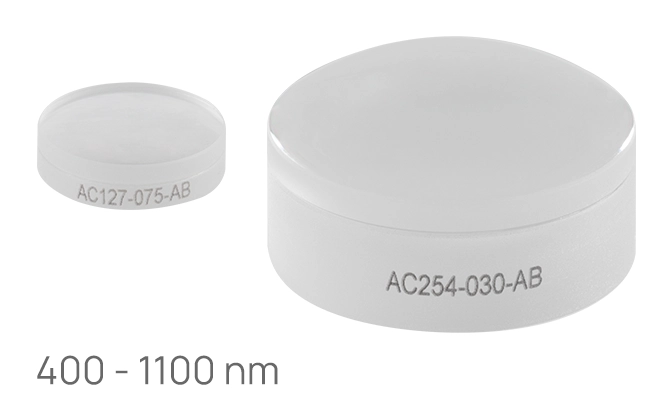

Unmounted Achromatic Doublets, AR Coated 400 to 1100 nm
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Cemented two element lenses corrected so that two wavelengths share a focus, which cuts chromatic and spherical aberration and gives a much smaller spot than a singlet. Supplied in half inch, one inch and two inch diameters.
Technical Specifications
| Parameter | Value |
|---|---|
| Design wavelengths | 488 nm, 707 nm and 1064 nm |
| AR coating range | 400 to 1100 nm, average reflectance less than 1.0% |
| Diameters | 1/2", 1" and 2" |
| Surface quality | 40-20 scratch-dig; centration less than 3 arcmin |
| Pulsed damage threshold | 1.5 J per square centimetre at 1064 nm, 10 ns, 10 Hz |
| Operating temperature | -40 to 85 degrees C |
