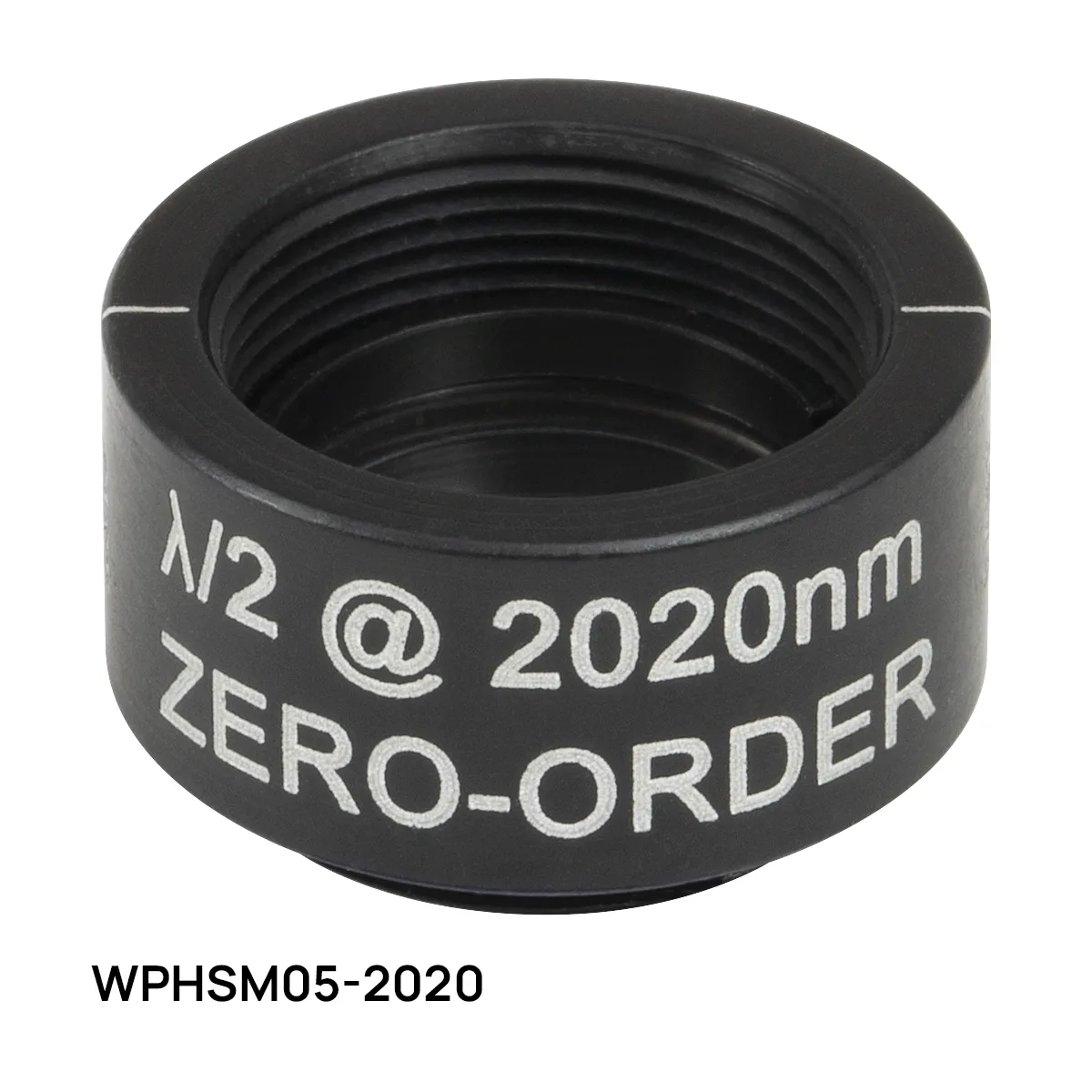

Mounted Zero-Order Half-Wave Plates (WPH Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Compound zero-order retarders made by pairing two multi-order crystalline quartz plates with crossed axes. The result rotates linear polarisation with much less temperature and wavelength dependence than a single multi-order plate.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | crystalline quartz, air-spaced design |
| Retardance accuracy | better than lambda/300 typical |
| Beam deviation | less than 10 arcsec |
| Surface quality | 20-10 scratch-dig |
| Reflectance at the design wavelength | less than 0.25% per surface |
| Specification | Design wavelengths from 266 nm to 2020 nm, 1/2" and 1" optic options |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
