TravelMax LNR25 Linear Translation Stages, 25 mm Travel, Manual
Brand: ThorLabs | Category: Scientific & Laboratory Equipment

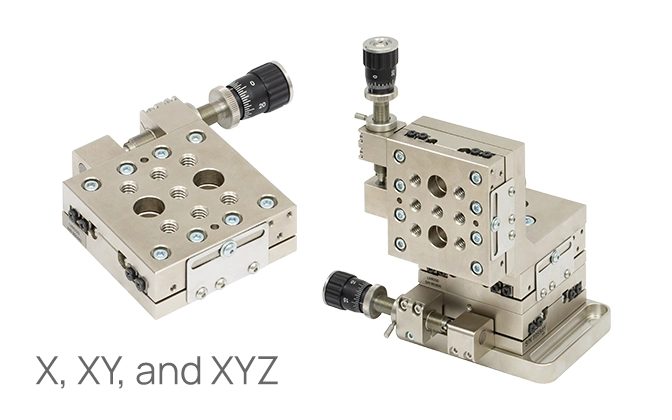

All steel manual translation stages on crossed roller bearings, offered with a micrometer or a differential drive. The rigid thermally matched construction gives uniform motion over the full range and the stages stack into XYZ configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Travel | 25 mm (1") |
| Minimum step size | 1, 10 or 25 micrometres depending on actuator |
| Horizontal load capacity | 20 kg (44 lbs); vertical 8 kg (17.6 lbs) |
| Runout over full range | plus or minus 1.5 micrometres |
| Bearings | crossed roller; body all steel |
| LNR25D differential drive | 25 micrometres per revolution over a 250 micrometre range |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
