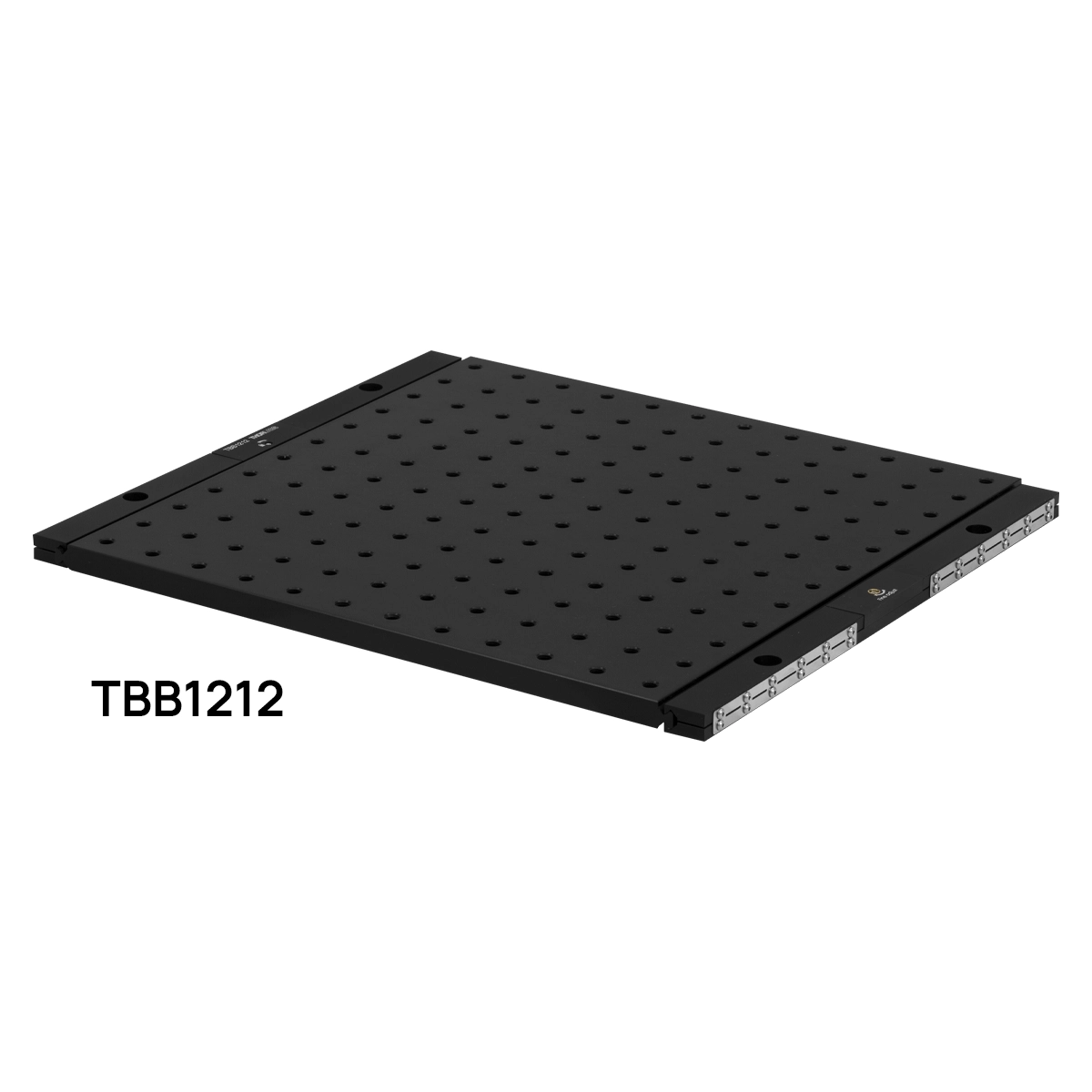

TBB Series Large-Area Translation Stages
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Hand operated rack and pinion stages large enough to carry a whole experiment, with a deck height that matches standard breadboards. Fine adjustment is by hex key and the position locks with a setscrew.
Technical Specifications
| Parameter | Value |
|---|---|
| Travel range | 2.4" (60 mm) or 4.8" (120 mm) |
| Working height | 0.5" (12.7 mm) |
| Adjustment ratio | 31.4 mm per revolution of the hex screw |
| Maximum load capacity | 44 lb (20 kg) |
| Runout over full travel range | less than 50 micrometres |
| Construction | solid aluminium, black anodised |
