GN and GNL Series Goniometric Stages
Brand: ThorLabs | Category: Scientific & Laboratory Equipment

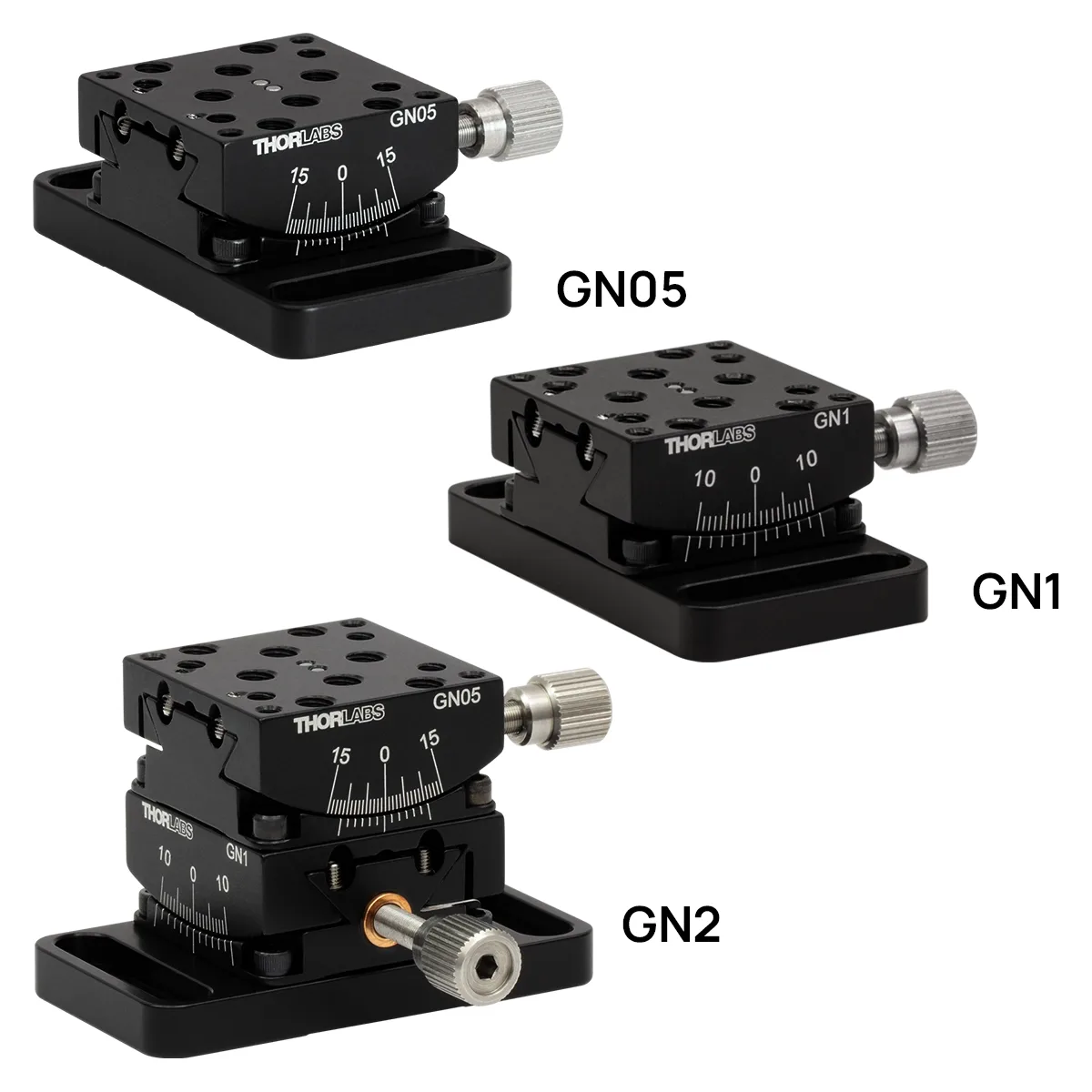

Stages that tilt an object about a fixed point above the mounting surface, so the sample stays in place while its angle changes. Two models can be stacked in an XY configuration sharing the same point of rotation.
Technical Specifications
| Parameter | Value |
|---|---|
| Rotation | plus or minus 5 to plus or minus 15 degrees depending on model |
| Accuracy | 10 arcmin (0.167 degrees) |
| Distance to point of rotation | 12.7 mm, 25.4 mm or 44.5 mm above the top surface |
| Load capacity | 0.25 lbs (0.113 kg) on GN series, 1.0 lb (0.45 kg) on GNL series |
| Specification | Backlash-free spring-loaded design, fully lockable |
| Specification | 1 degree graduation marks on the side; anodised aluminium body |
