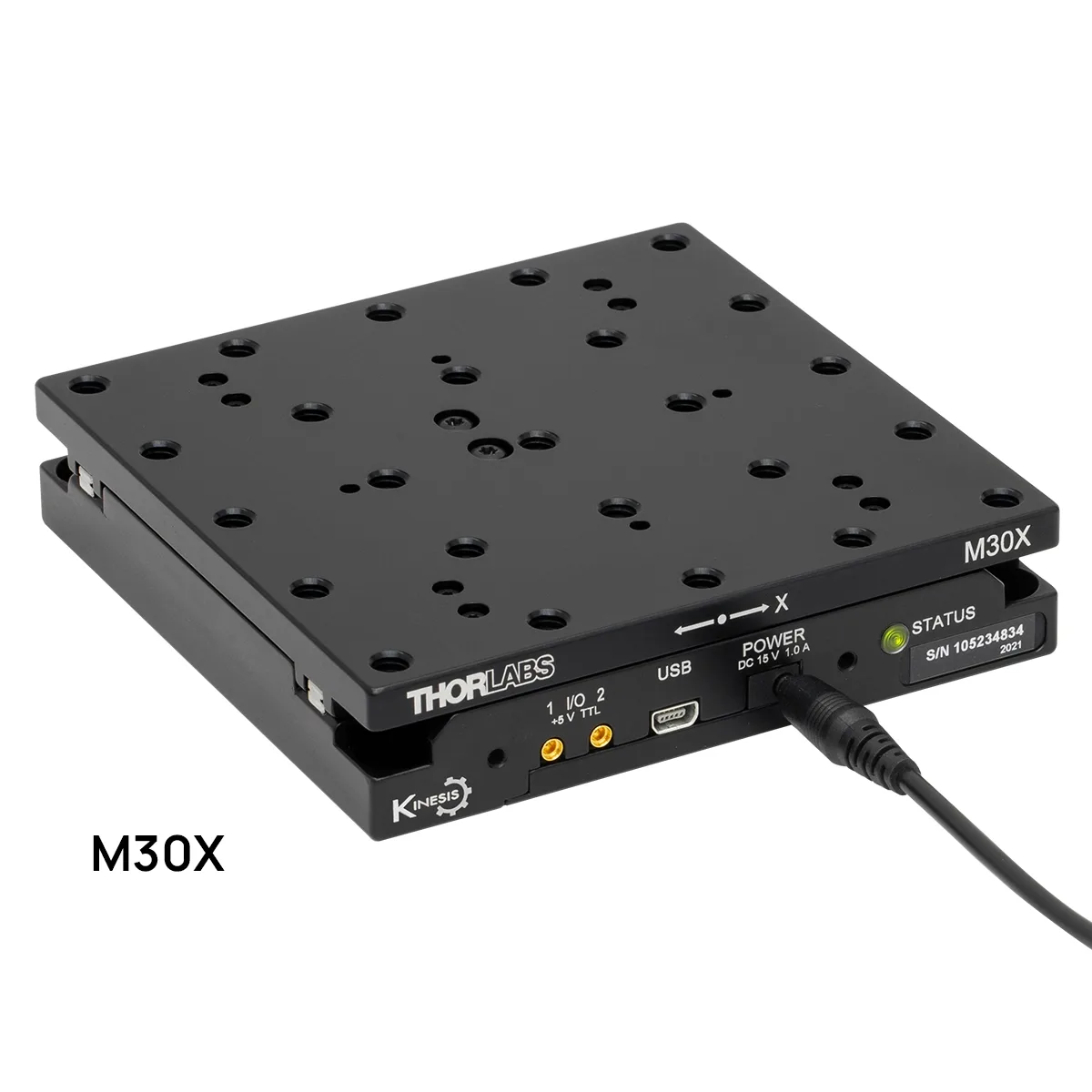

M30X and M30XY Kinesis 30 mm Motorized Translation Stages
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Single and dual axis motorised stages with the DC servo drive electronics built into the stage body, controlled from a PC over USB. External triggering allows them to be synchronised with cameras and detectors during a scan.
Technical Specifications
| Parameter | Value |
|---|---|
| Travel | 30 mm, or 30 mm x 30 mm on the M30XY |
| Maximum speed | 2.4 mm/s; acceleration 5.0 mm/s2 |
| Bidirectional repeatability | plus or minus 1.0 micrometres |
| Minimum incremental movement | 2.5 micrometres; accuracy 8 micrometres |
| Maximum load | 5.0 kg horizontal, 2.0 kg vertical |
| Specification | Pitch deviation plus or minus 100 microradians, yaw plus or minus 50 microradians |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
