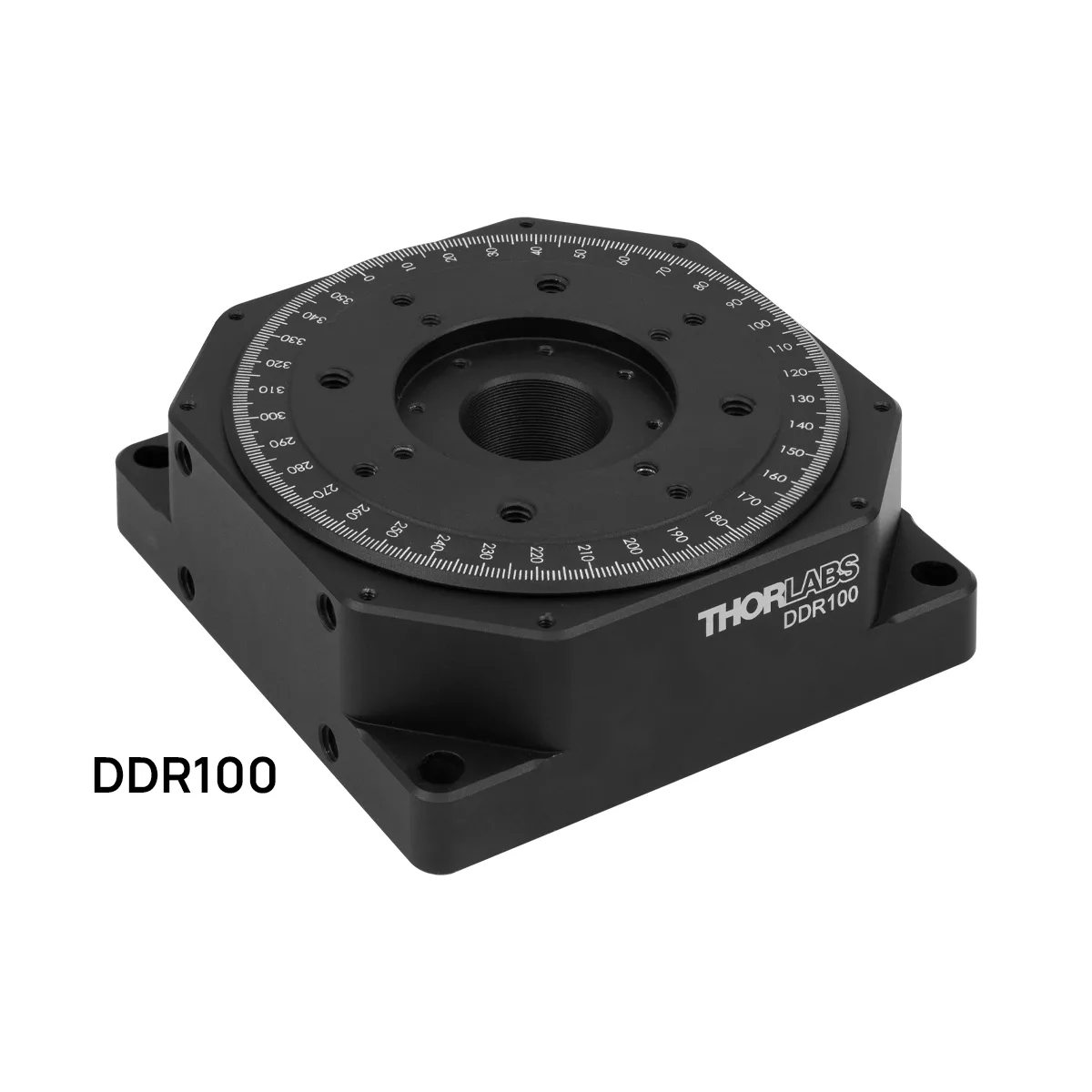

DDR100 Direct Drive Rotation Stage
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A low profile rotation stage driven by an integrated brushless DC motor with no leadscrew, so there is no backlash. High speed and a central SM1 threaded aperture suit polarisation scanning and sample rotation.
Technical Specifications
| Parameter | Value |
|---|---|
| Travel range | 360 degrees continuous; maximum velocity 180 rpm (3 Hz) |
| Bidirectional repeatability | 60 microradians; maximum axial wobble 60 microradians |
| Encoder resolution | 2.0 microradians (0.0001 degrees) |
| Horizontal load capacity | 5.0 kg; vertical 2.0 kg mounted centrally |
| Specification | Continuous torque 0.5 N.m, maximum burst torque 0.7 N.m |
| Specification | Central aperture SM1 threaded; dimensions 115 mm x 115 mm x 40 mm |
