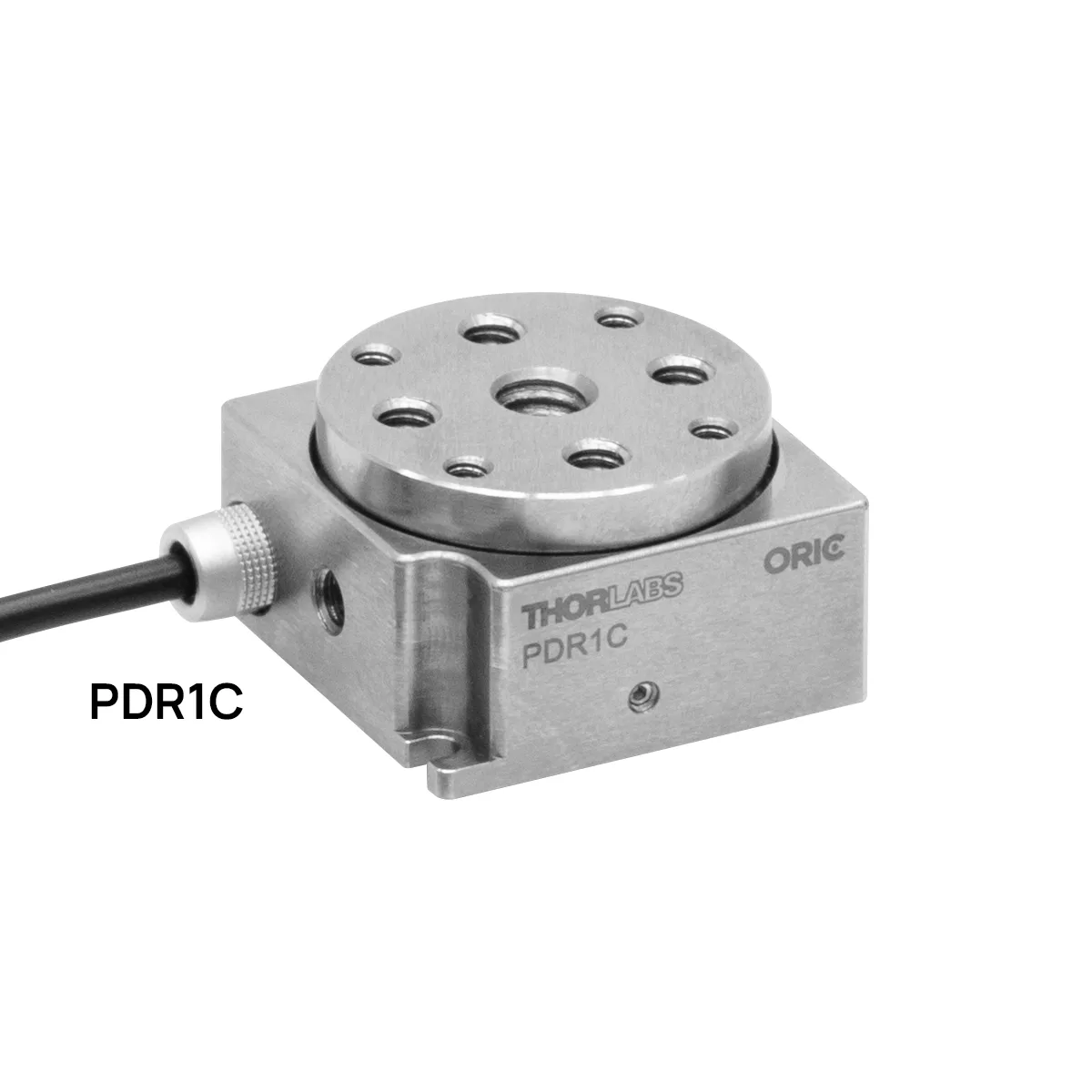

ORIC Rotation Stages with Piezoelectric Inertia Drive (PDR Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Compact stainless steel rotation stages driven by a piezoelectric inertia motor, giving fine backlash-free steps and holding position with power off. A central bore lets a beam pass through or takes optomechanics.
Technical Specifications
| Parameter | Value |
|---|---|
| Rotation range | 360 degrees continuous |
| Step size | 30 microradians typical with a PDXC controller |
| Maximum speed | 100 degrees per second typical with a PDXC controller |
| Horizontal load capacity | 1 kg (2.2 lbs); holding torque 20 mN.m |
| Lifetime | more than 10 billion steps; wobble 200 microradians or less |
| Dimensions | 30.0 mm x 30.0 mm x 18.0 mm, weight 96 g |
