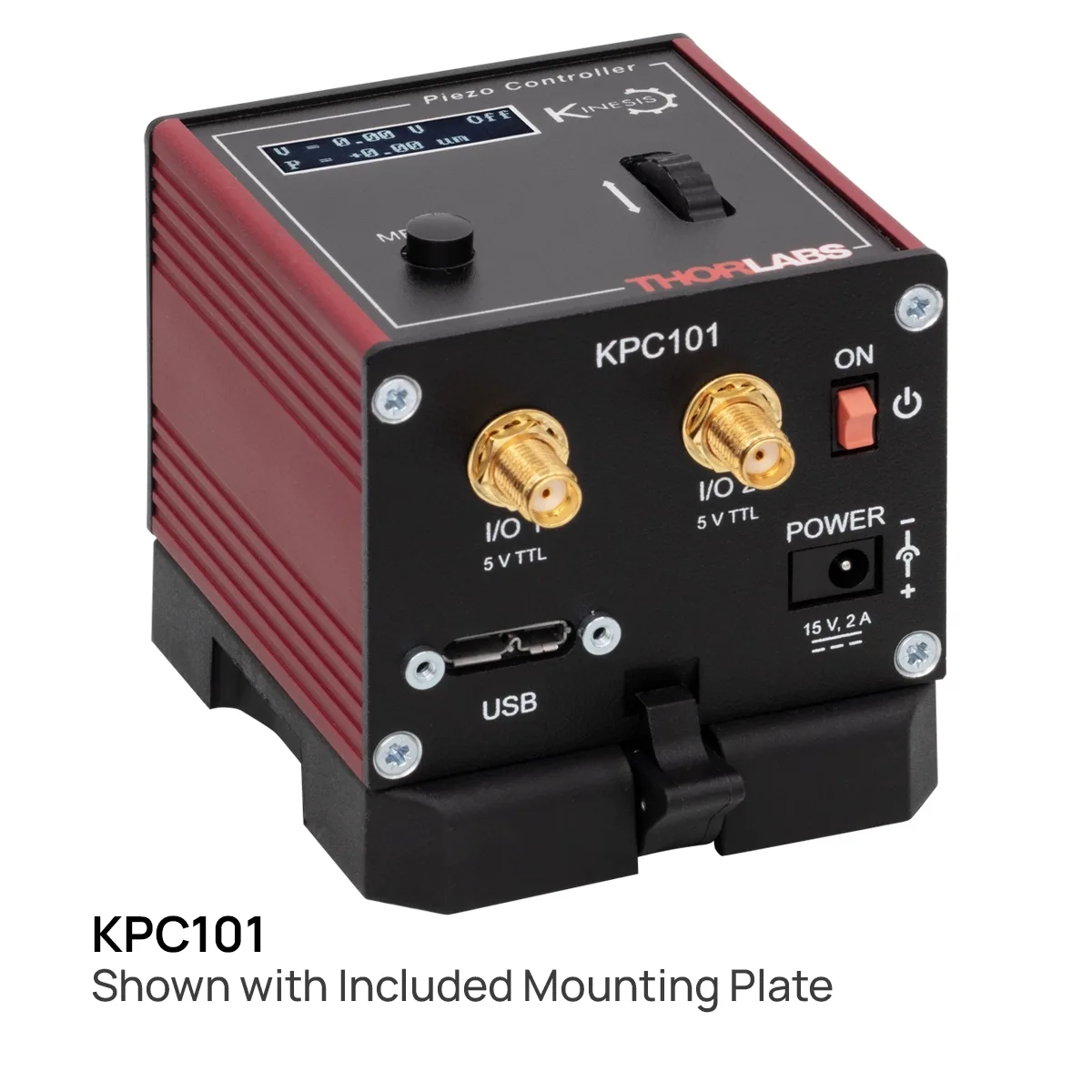

KPC101 K-Cube Piezo Controller and Strain Gauge Reader
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A single channel piezo drive and strain gauge readout in one compact cube, running open loop on voltage or closed loop on position. Digital triggers make it suitable for piezo scanning applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Piezo drive voltage | -10 to +150 V maximum, selectable 75 V or 150 V range |
| Piezo drive current | plus or minus 12 mA continuous |
| Output noise | less than 1 mV RMS |
| Drive bandwidth | 1 kHz with a 1 microfarad load at 1 V peak to peak |
| Typical piezo load capacitance | 1 to 10 microfarads |
| Housing | 60.0 mm x 60.0 mm x 47.0 mm, weight 0.21 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
