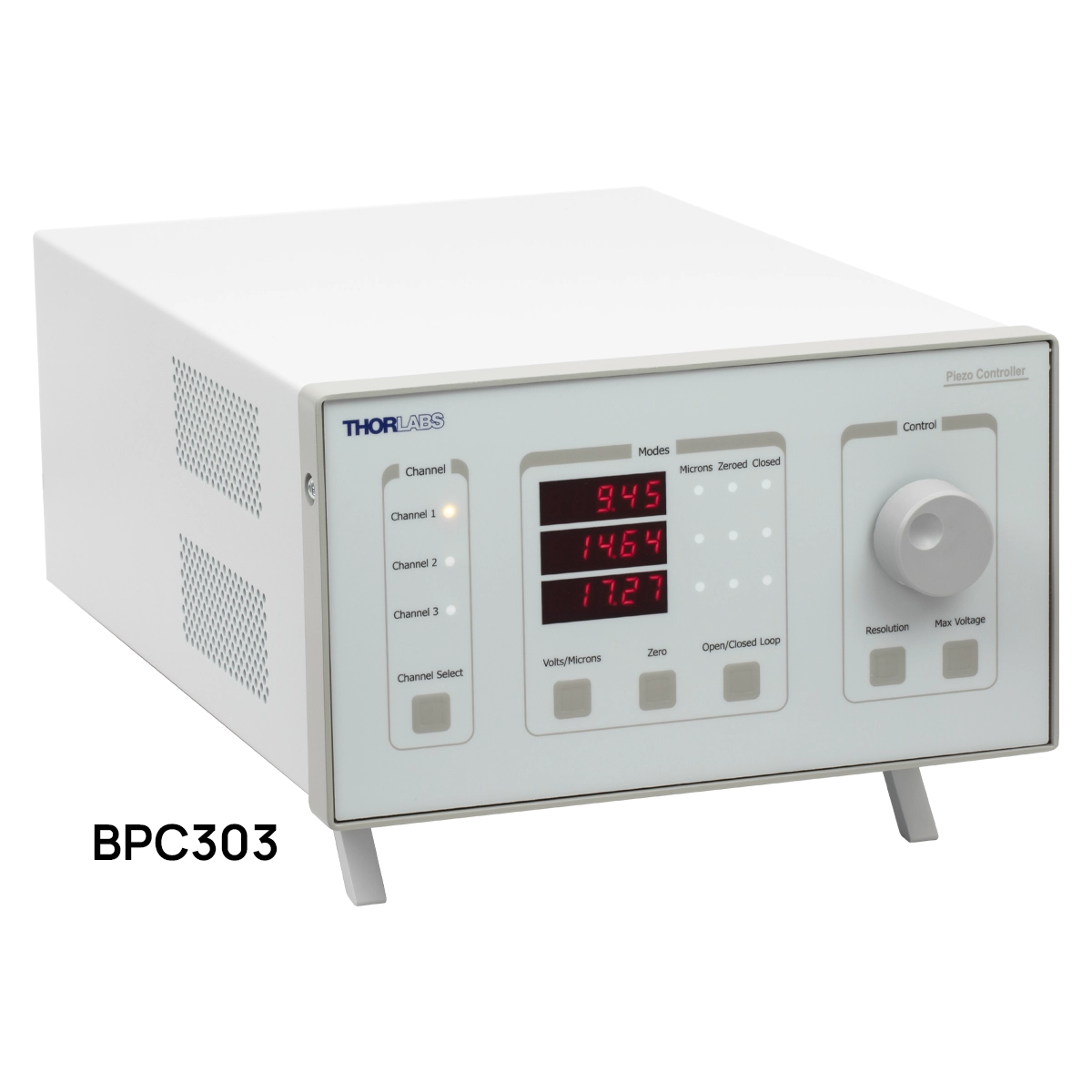

BPC301 and BPC303 Closed-Loop Piezo Controllers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
High power benchtop piezo controllers that run open or closed loop with strain gauge or capacitive sensor feedback. Waveform generation supports piezo scanning, and an auto-configure function reads Thorlabs actuator identification.
Technical Specifications
| Parameter | Value |
|---|---|
| Output voltage | 75 V, 100 V or 150 VDC under software control |
| Output current | 500 mA continuous (BPC301), 1 A continuous (BPC303) |
| Noise | less than 3 mV RMS; stability 100 ppm over 24 hours |
| Bandwidth | 10 kHz with a 1 microfarad load at 1 V peak to peak |
| Typical position resolution | 5 nm for a 20 micrometre actuator |
| Feedback | strain gauge or capacitive sensor, AC bridge at 18 kHz excitation |
