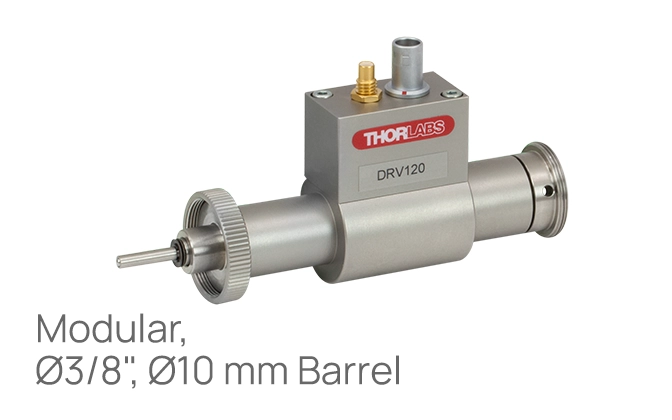

DRV120 Modular Piezoelectric Actuator
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A piezo drive that fits between a NanoMax stage and its existing actuator, adding fine travel with strain gauge feedback for closed loop control. It also fits any stage that accepts a 9.5 mm mounting barrel.
Technical Specifications
| Parameter | Value |
|---|---|
| Travel | 20 micrometres |
| Piezo voltage | 0 to 75 V |
| Resolution | 5 nm |
| Feedback | strain gauge |
| Capacitance | 7.2 microfarads |
| Compatible controllers | BPC301, MPZ601 and KPC101; PAA622 cable included |
