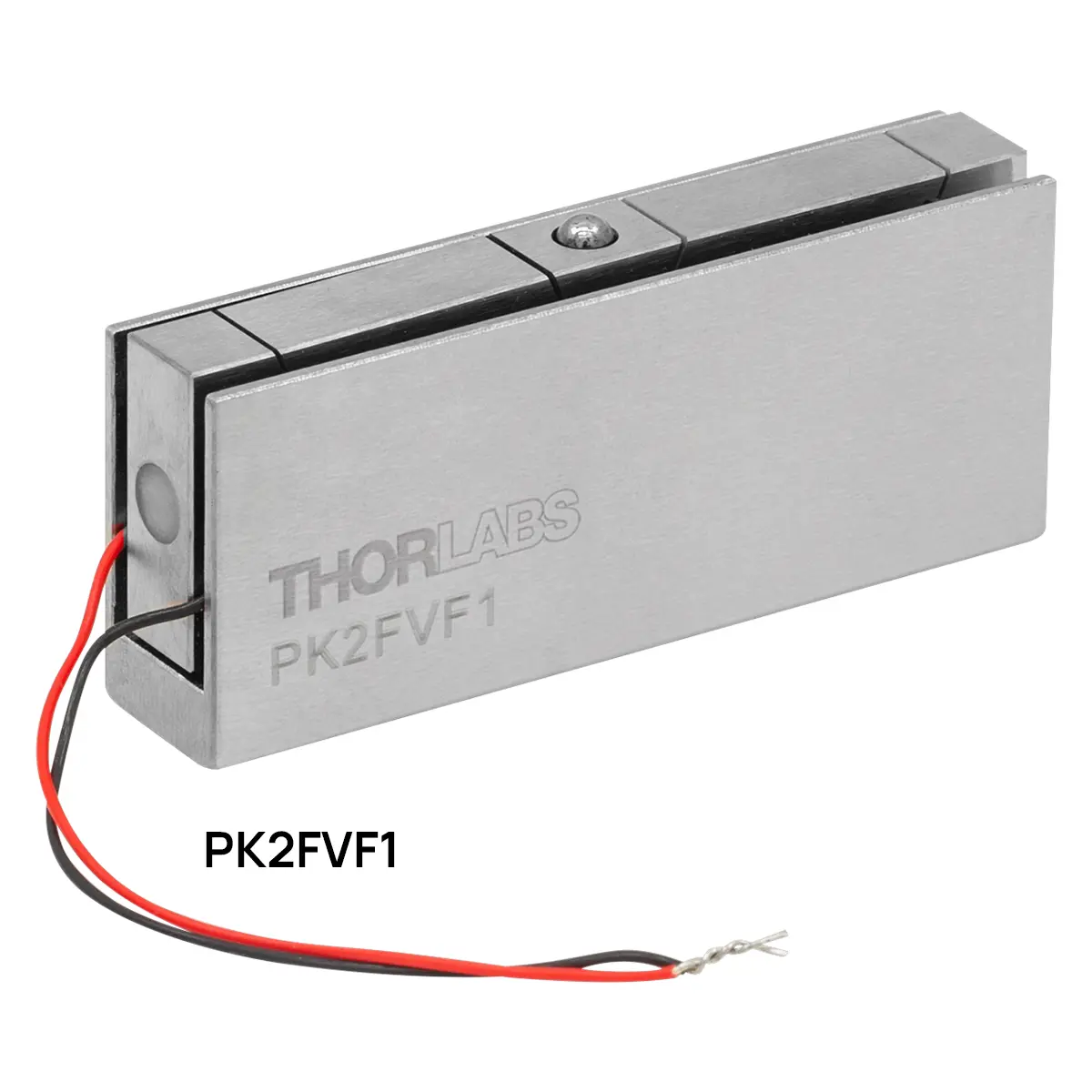

Amplified Piezoelectric Actuators, 220 µm to 2500 µm Travel
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Discrete piezo stacks mounted inside a flexure housing that acts as a lever, greatly increasing the free stroke while keeping the fast response of the stack. They are backlash free and suitable for open or closed loop use.
Technical Specifications
| Parameter | Value |
|---|---|
| PK2F series maximum displacement | 220 micrometres or 420 micrometres |
| APF series maximum displacement | 390, 560, 1500 or 2500 micrometres |
| PK2F drive voltage range | 0 to 75 V |
| APF drive voltage range | -30 to 150 V |
| Specification | Forces up to 100 N |
| PK2F mounting | M2.5 taps and top ball contact |
