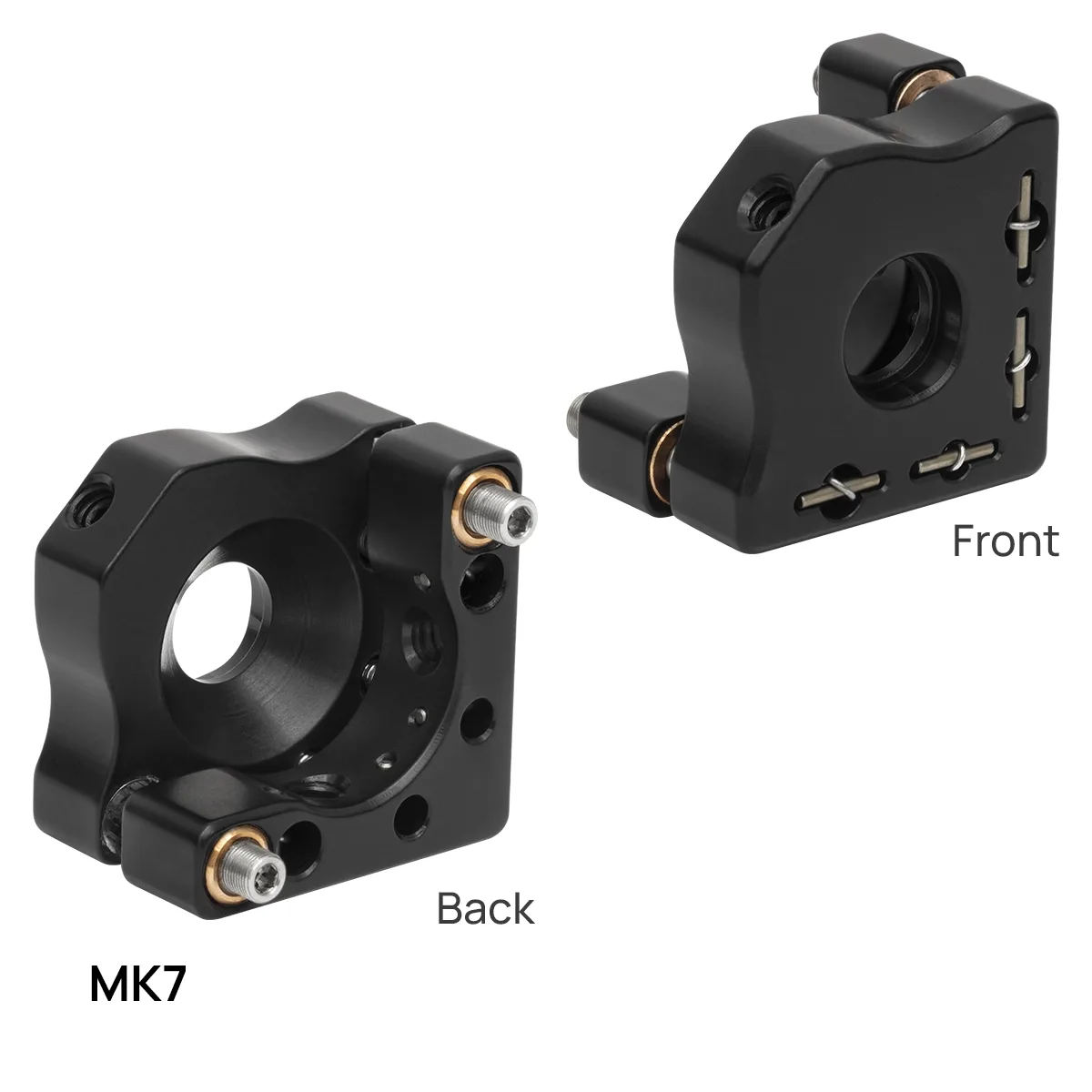

Kinematic Mirror Mounts with Two Adjusters (KM Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
The general purpose two adjuster kinematic mount used across most teaching and research optical benches. Versions take 7 mm to 2 inch optics with either double-bore setscrew retention or an SM-threaded bore for thin optics and threaded components.
Technical Specifications
| Parameter | Value |
|---|---|
| Optic sizes | 7 mm, 10 mm, 1/2", 1" and 2" diameter |
| Angular adjustment range | plus or minus 4 degrees (plus or minus 3 degrees for 2" mounts) |
| Specification | Hardened steel inserts at the kinematic contact points |
| Specification | Phosphor bronze bushings and stainless steel lead screws |
| Body material | black anodised aluminium |
| Specification | Mountable in left-handed or right-handed orientation |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
