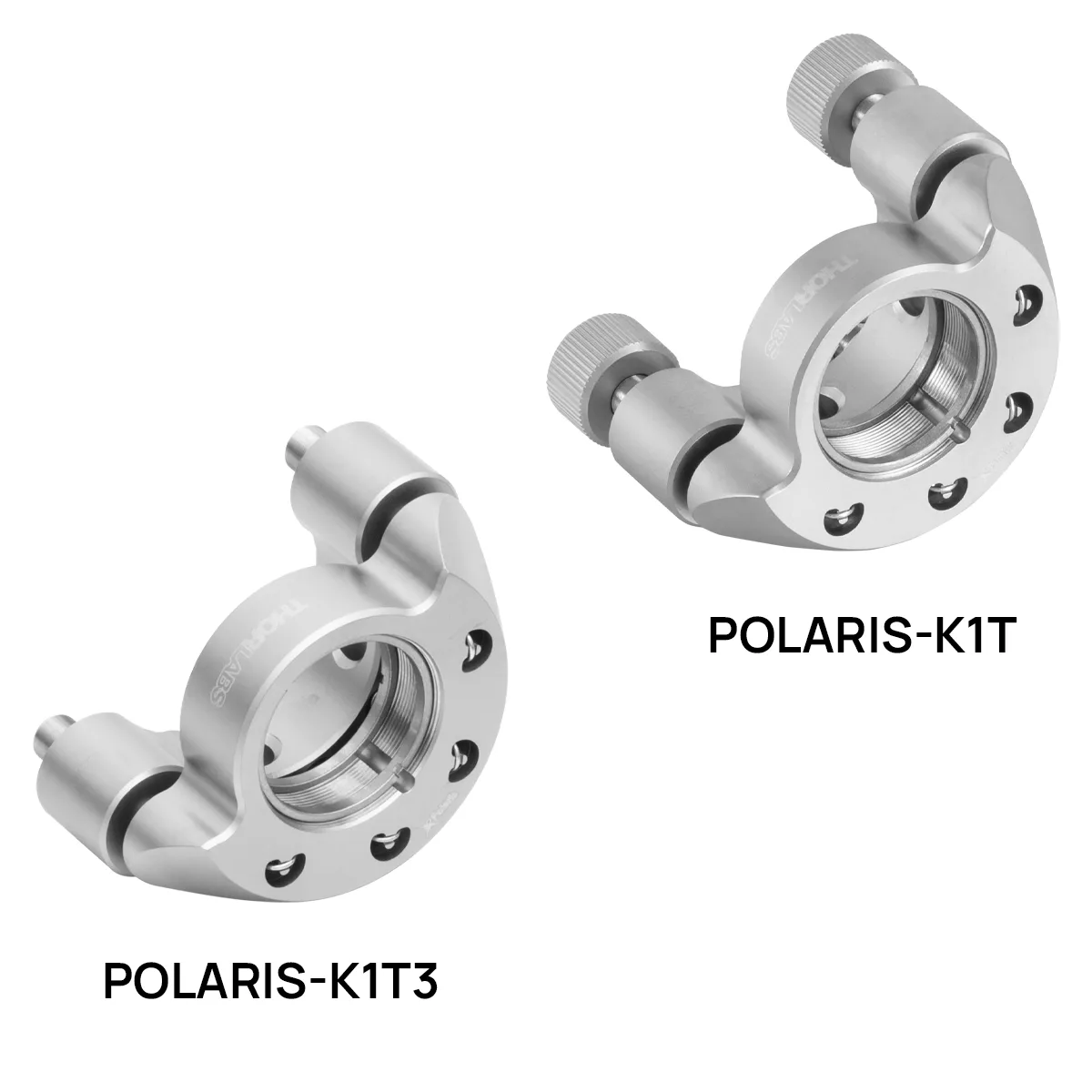

Polaris SM1-Threaded Low-Drift Kinematic Mirror Mounts
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Heat treated stainless steel kinematic mounts built for long term pointing stability, with sapphire adjuster seats and matched 100 TPI actuator and body pairs. The SM1-threaded bore takes one inch optics, lens tubes or other threaded components.
Technical Specifications
| Parameter | Value |
|---|---|
| Optic size | 1" diameter, up to 0.34" (8.6 mm) thick |
| Mechanical angular range | plus or minus 4 degrees, about 7.7 mrad per revolution |
| Mechanical resolution per adjuster | 5 microradians typical, 2 microradians achievable |
| Beam deviation after thermal cycling | less than 1 microradian |
| Vacuum compatibility | 10-9 Torr at 25 C with bake out |
| Operating temperature range | -30 to 200 C |
