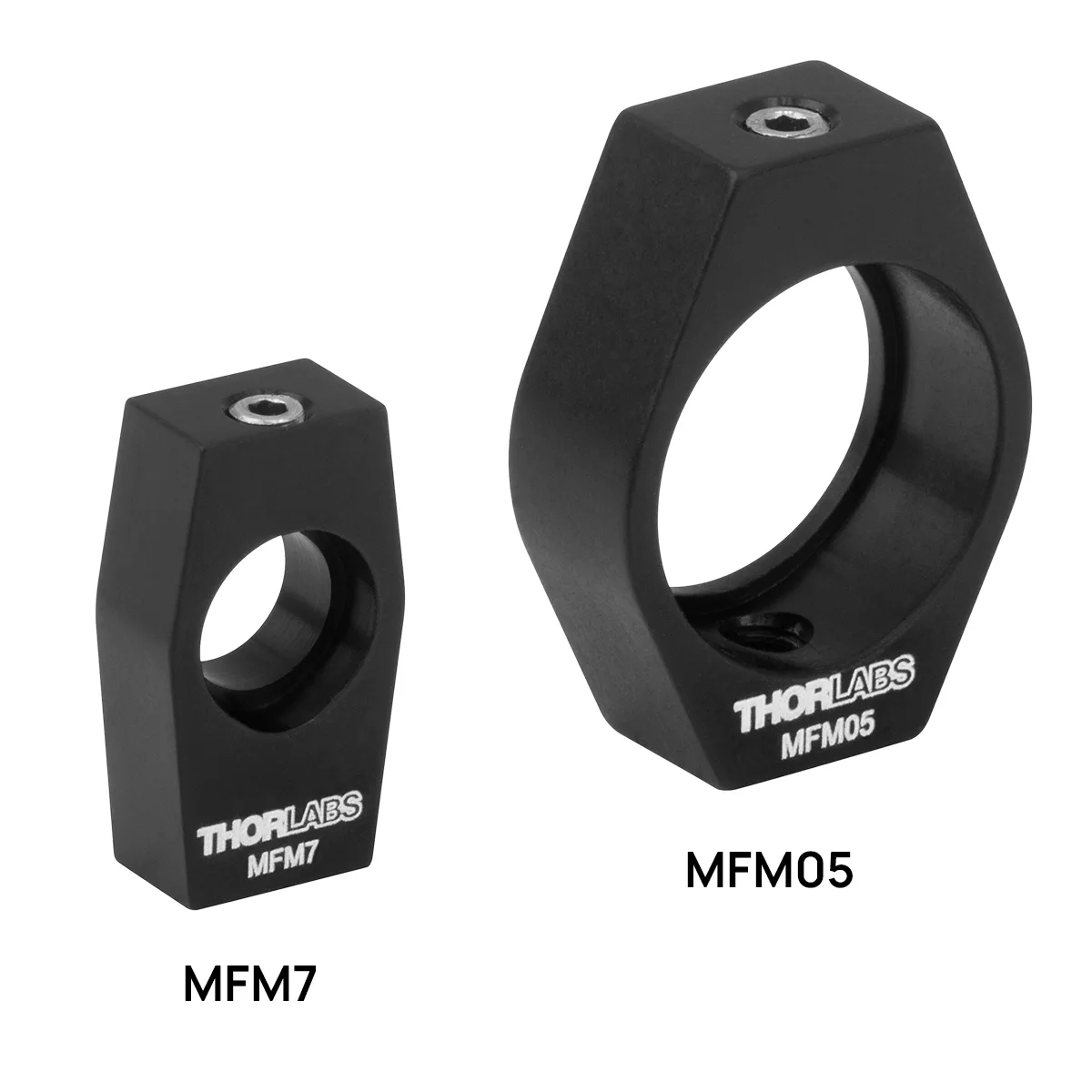

Fixed Mirror Mounts (FMP and MFM Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Non-adjustable mounts for holding mirrors, windows and other flat optics at a fixed angle. A nylon-tipped setscrew secures the optic and a tapped hole on the base takes a standard post, giving a low cost way to fix optics that need no alignment.
Technical Specifications
| Parameter | Value |
|---|---|
| Optic sizes | 7 mm, 10 mm, 12.5 mm, 1/2", 25 mm, 1", 1.5", 50 mm, 2" and 3" |
| Specification | Post mounting via a 4-40 (M3) or 8-32 (M4) tapped hole |
| Specification | Versions compatible with 30 mm and 60 mm cage systems |
| Specification | Nylon-tipped setscrew secures the optic |
| Body material | black anodised aluminium |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
