Ø1" (Ø25.0 mm) Pedestal Pillar Posts
Brand: ThorLabs | Category: Scientific & Laboratory Equipment

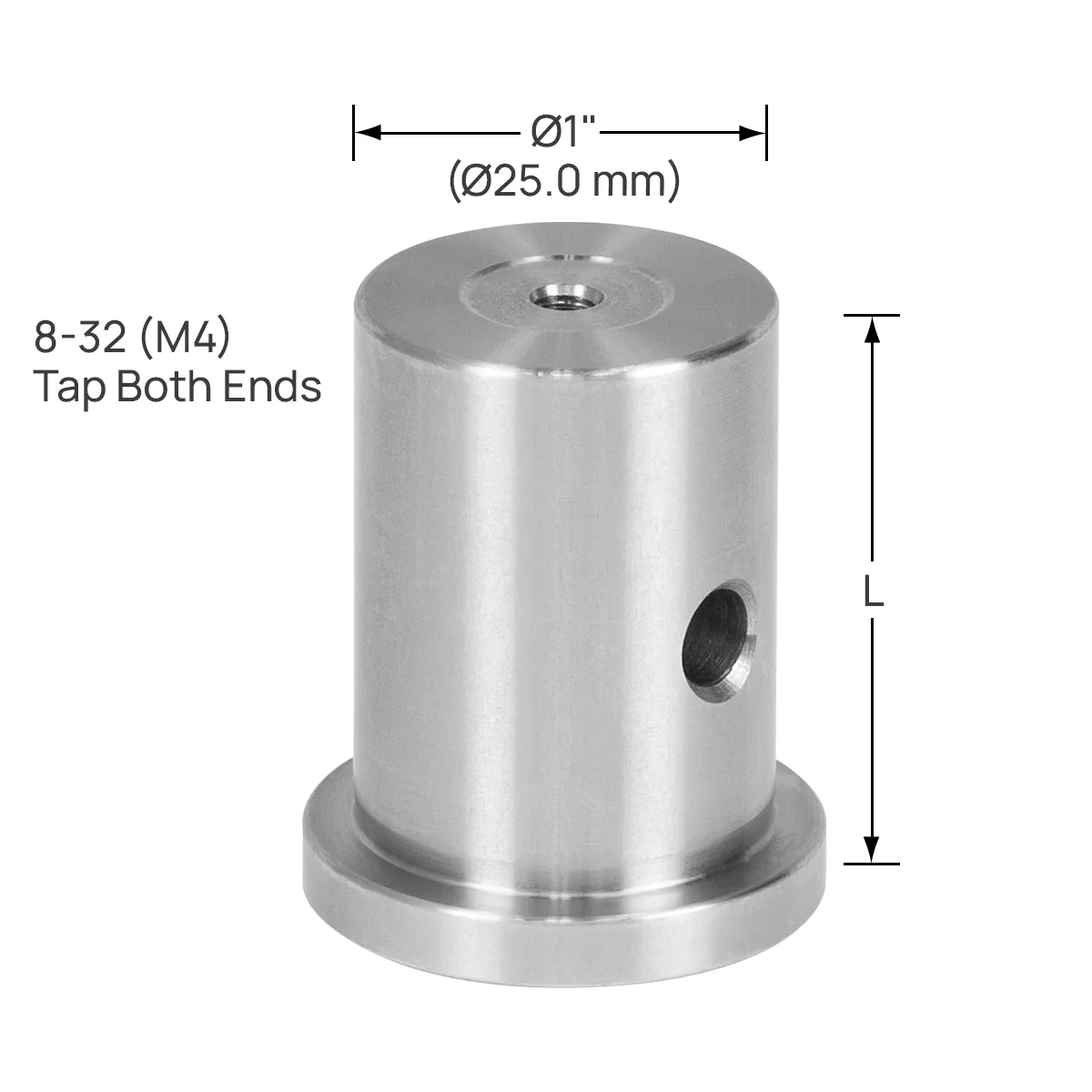

One piece non-magnetic stainless steel posts, precision ground to 25.0 mm diameter and tapped at both ends so they stack. The pedestal base works with clamping forks, giving a rigid way to set optic height on a table or breadboard.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Post lengths from 0.5" (12.5 mm) to 6" (155 mm) |
| Material | solid stainless steel, precision ground to 1" (25.0 mm) |
| Taps | 8-32 (M4) or 1/4"-20 (M6) on both ends |
| Specification | Stackable, with extension posts and post spacers available |
| Specification | Pedestal base compatible with Thorlabs clamping forks |
