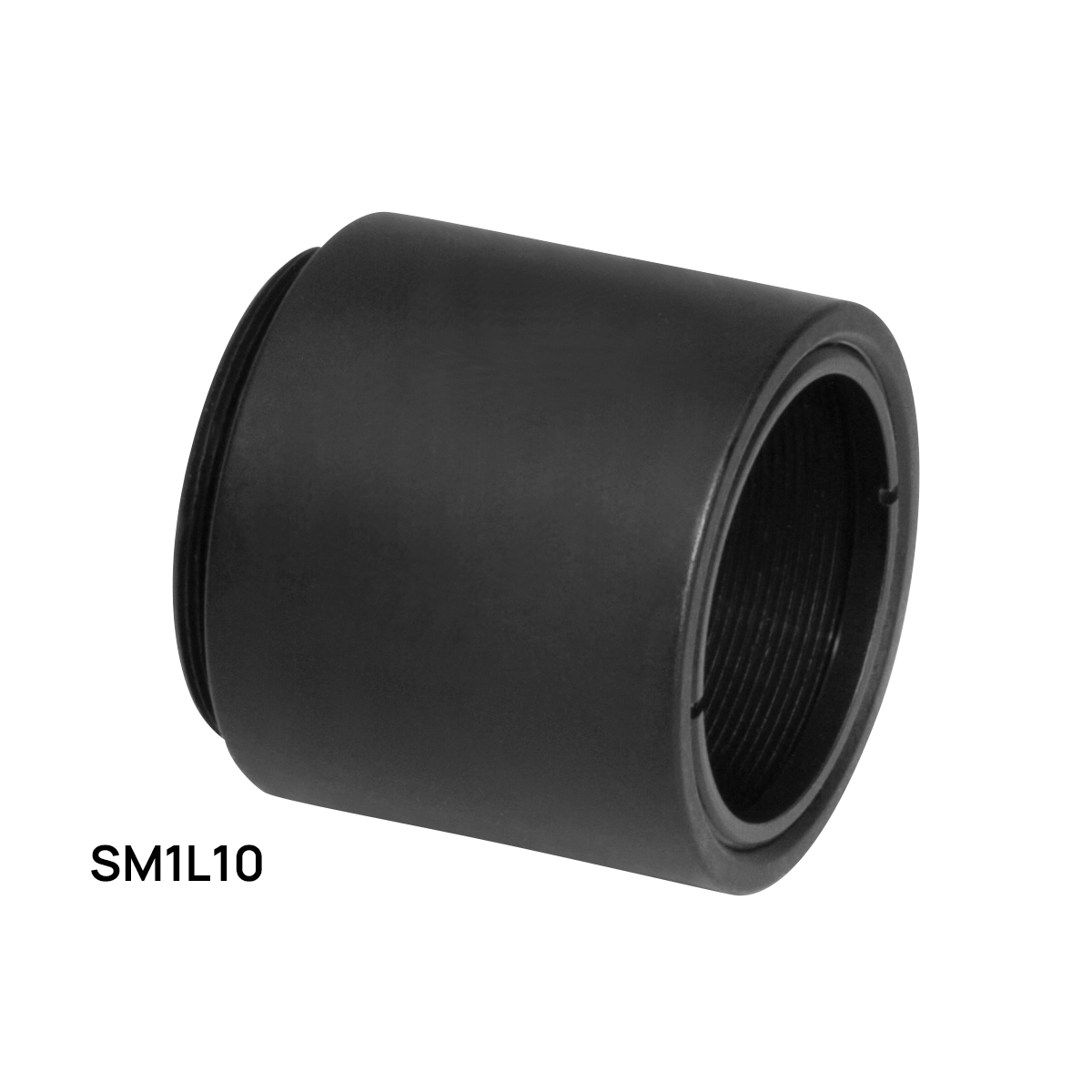

Ø1" SM1 Lens Tubes
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
SM1 threaded lens tubes that take one inch optics directly and build light-tight optical subassemblies. The 1.035 inch-40 thread standard runs through most of the Thorlabs range, so tubes, mounts, adapters and cage plates all interlock.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Accept 1" (25.4 mm) diameter optics |
| Specification | Lengths from 0.30" (7.6 mm) to 4.00" (101.6 mm) |
| Thread standard | SM1, 1.035"-40 |
| Specification | Compatible with Thorlabs 30 mm cage systems |
| Specification | Slotted, spacer and non-externally-threaded versions available |
| Specification | Vacuum-compatible stackable versions in stock |
