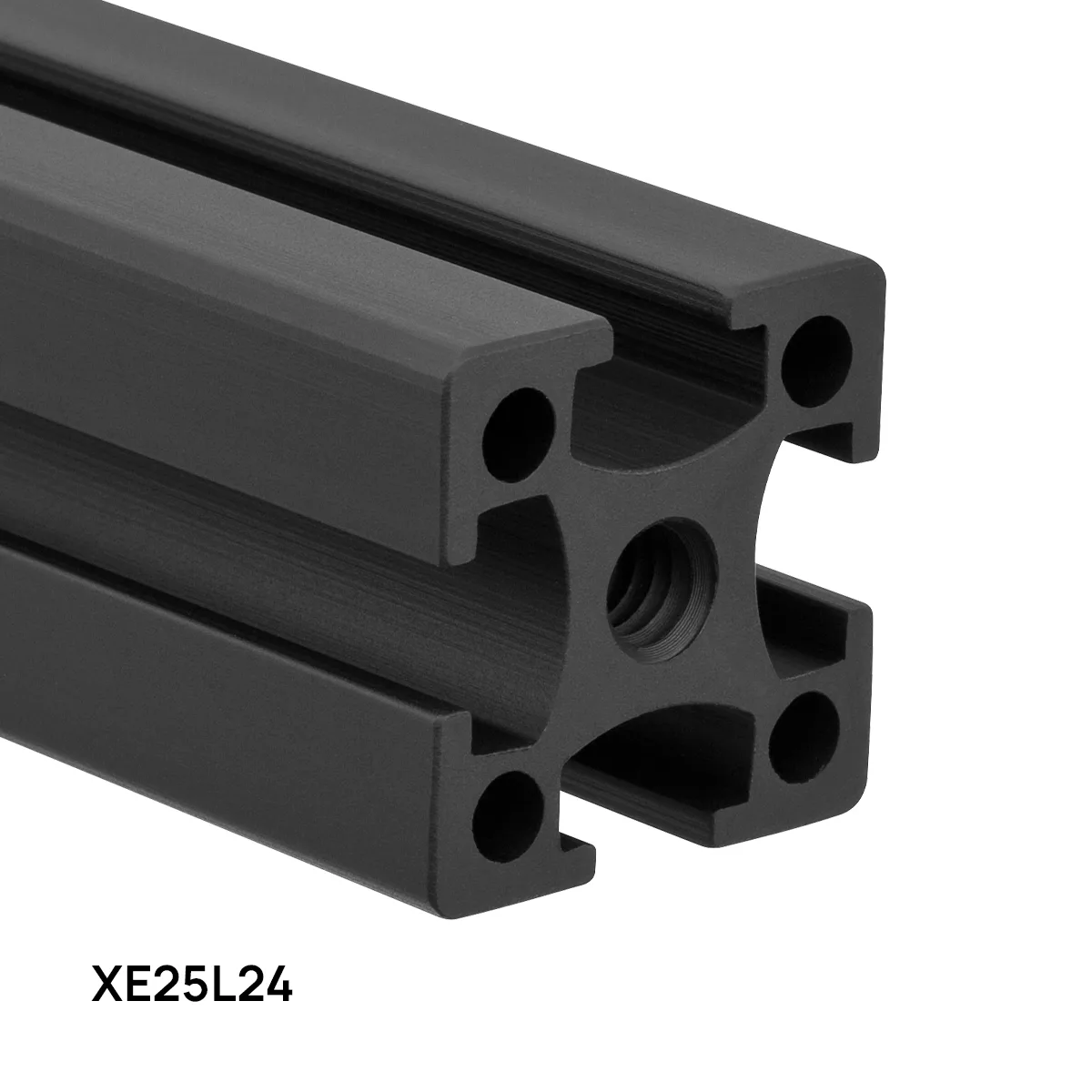

XE25 25 mm Optical Construction Rails
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Extruded aluminium rails with a 25 mm square profile and channels on all four faces, used to build enclosures, frames and rigid mechanical structures on an optical table. T-nuts in the channels accept any 8-32 or 1/4 inch-20 optomechanical component.
Technical Specifications
| Parameter | Value |
|---|---|
| Profile | 25 mm x 25 mm, channels on all four sides |
| Stock lengths | 9" to 48" imperial, 225 mm to 1200 mm metric |
| Mass per length | 0.811 kg/m |
| Cross-sectional area | 3.13 square centimetres |
| Second moment of area | 1.68 cm4 in both X and Y |
| Specification | Centred 1/4"-20 (M6) tapped hole at both ends |
