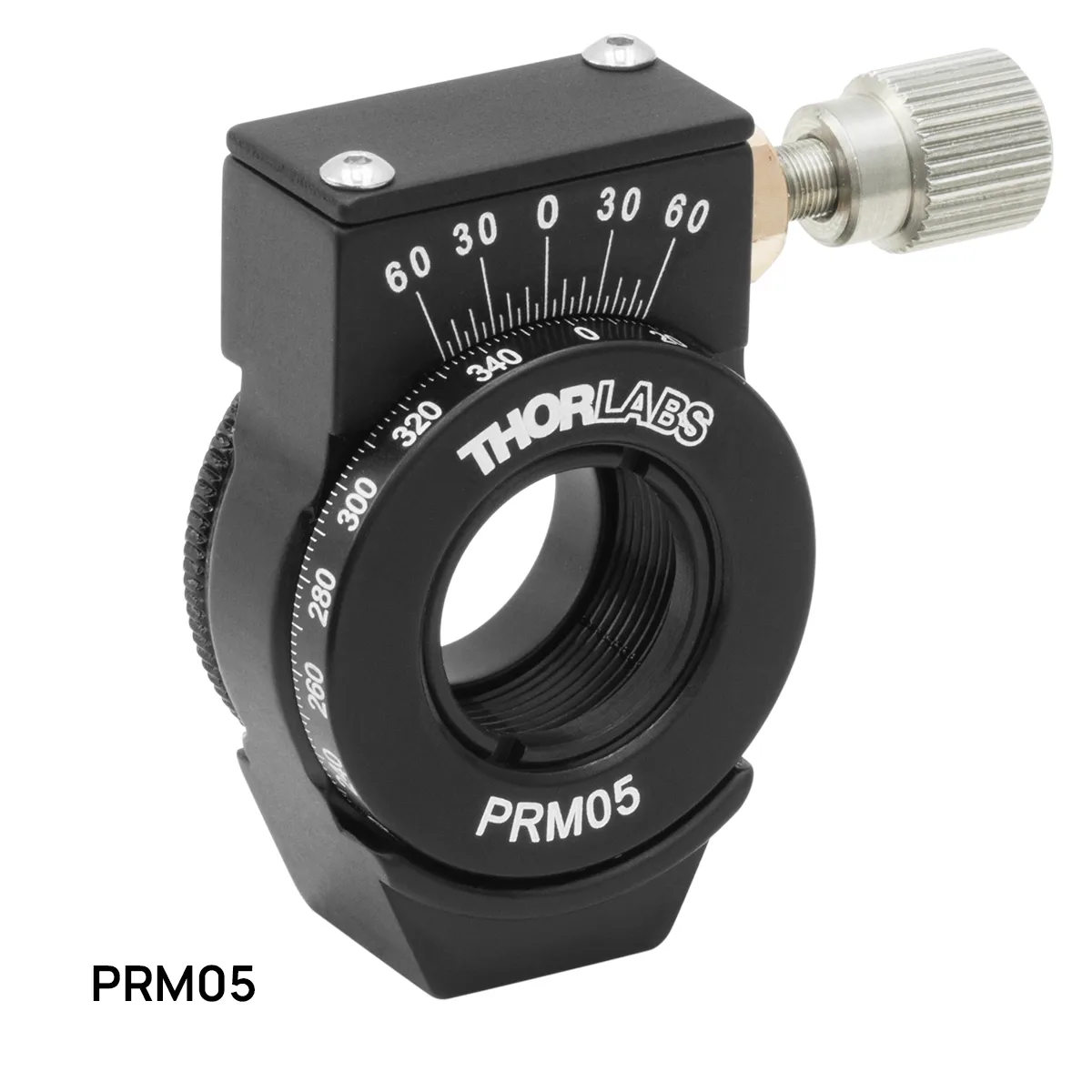

Manual Rotation Mounts, High Precision (PRM Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Rotation mounts that combine continuous 360 degree coarse rotation with a locking dial and backlash-free fine adjustment. They are the standard way to set the angle of polarisers and wave plates in half inch, one inch and two inch sizes.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Continuous 360 degrees of coarse rotation |
| Specification | Fine rotation over plus or minus 7 degrees when the dial is locked |
| Vernier resolution | 10 arcmin (PRM05), 5 arcmin (PRM1 and PRM2) |
| Specification | Compatible with SM05, SM1 and SM2 lens tubes |
| Specification | PRM1 takes 30 mm cage, PRM2 takes 60 mm cage |
| Specification | Secured to 1/2" posts via a bottom 8-32 (M4) tapped hole |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
