Adjustable SM1 Lens Tubes
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Lens tubes that translate an optic along the optical axis inside an SM1 assembly. Rotating versions give simple travel while the SM1ZM and SM1NR zoom housings use a helical drive so the internal cell moves without rotating, which matters for polarisation optics.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Mount SM1-threaded lens tubes, 1" (25.4 mm), 25 mm or 1/2" (12.7 mm) optics |

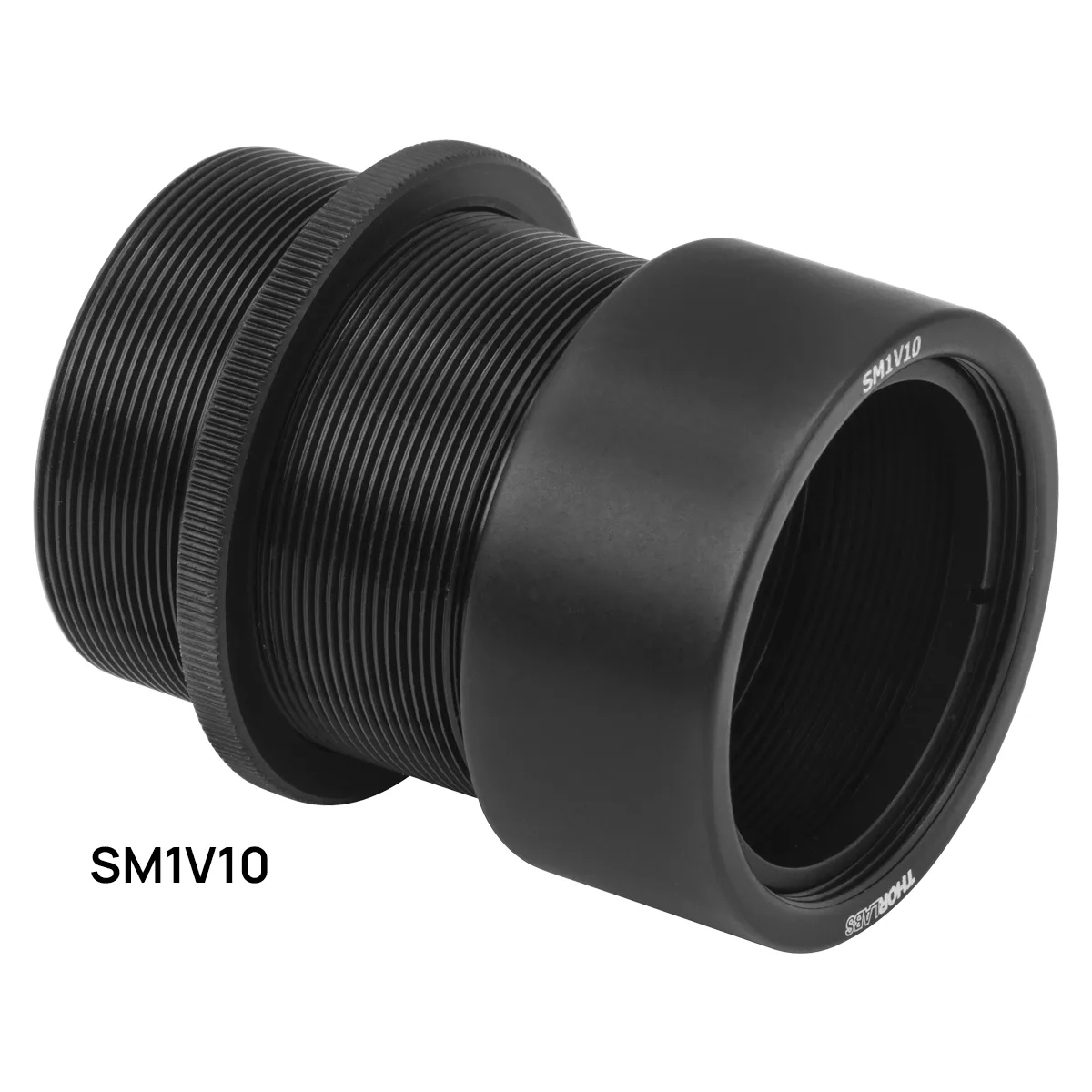

| Specification | SM1V05, SM1V10 and SM1V15 give rotating adjustment |
| Specification | SM1ZM, SM1NR1 and SM1NR05 give non-rotating linear travel |
| Specification | SM1U adjustable collimation adapter gives 11 mm of rotating adjustment |
| Specification | SM1V10V is a vacuum-compatible vented version |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
