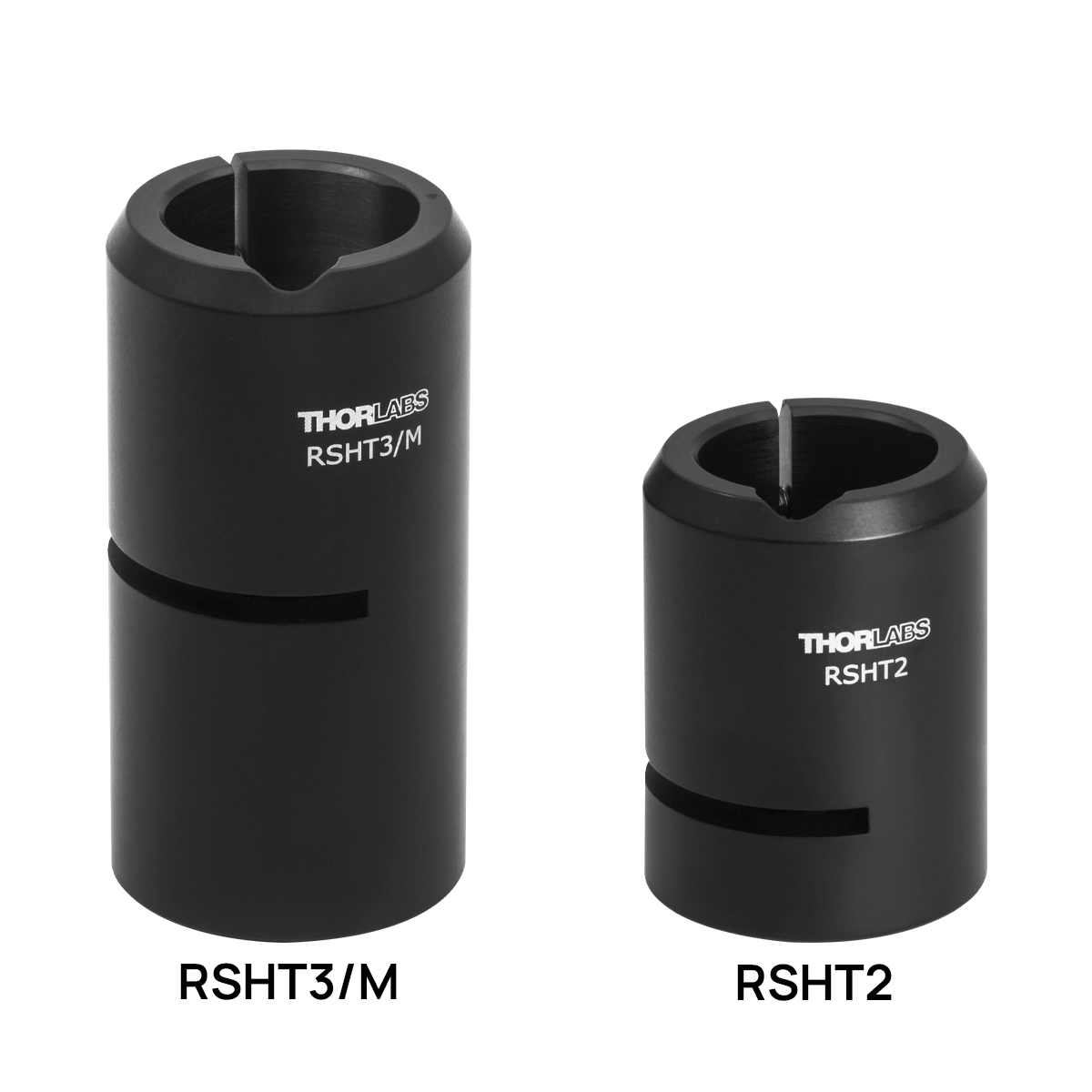

Ø1" (Ø25 mm) Post Holders
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Post holders for one inch diameter optical posts, using a flexure clamp that grips the post along two contact lines. They give height adjustment with the stability of a pillar post and are offered in four lengths with a bottom tapped hole or pedestal base.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Accept 1" (25 mm) diameter RS pillar posts |
| Available lengths | 1.5" (38 mm), 2" (50 mm), 3" (75 mm) and 4" (100 mm) |
| Specification | Bottom-located 1/4"-20 (M6) mounting hole |
| Specification | Flexure locking mechanism secured with an 8-32 (M4) cap screw |
| Specification | Pedestal base compatible with PF85B, PF125B and PF175B clamping forks |
