Gimbal Mirror Mounts
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Mounts that rotate the optic about the centre of its front surface, so beam steering produces no translation and very little crosstalk between axes. Manual models cover one inch and two inch optics, and a piezo driven version is available for fine remote control.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | True gimbal rotation about the mirror centre without translation |

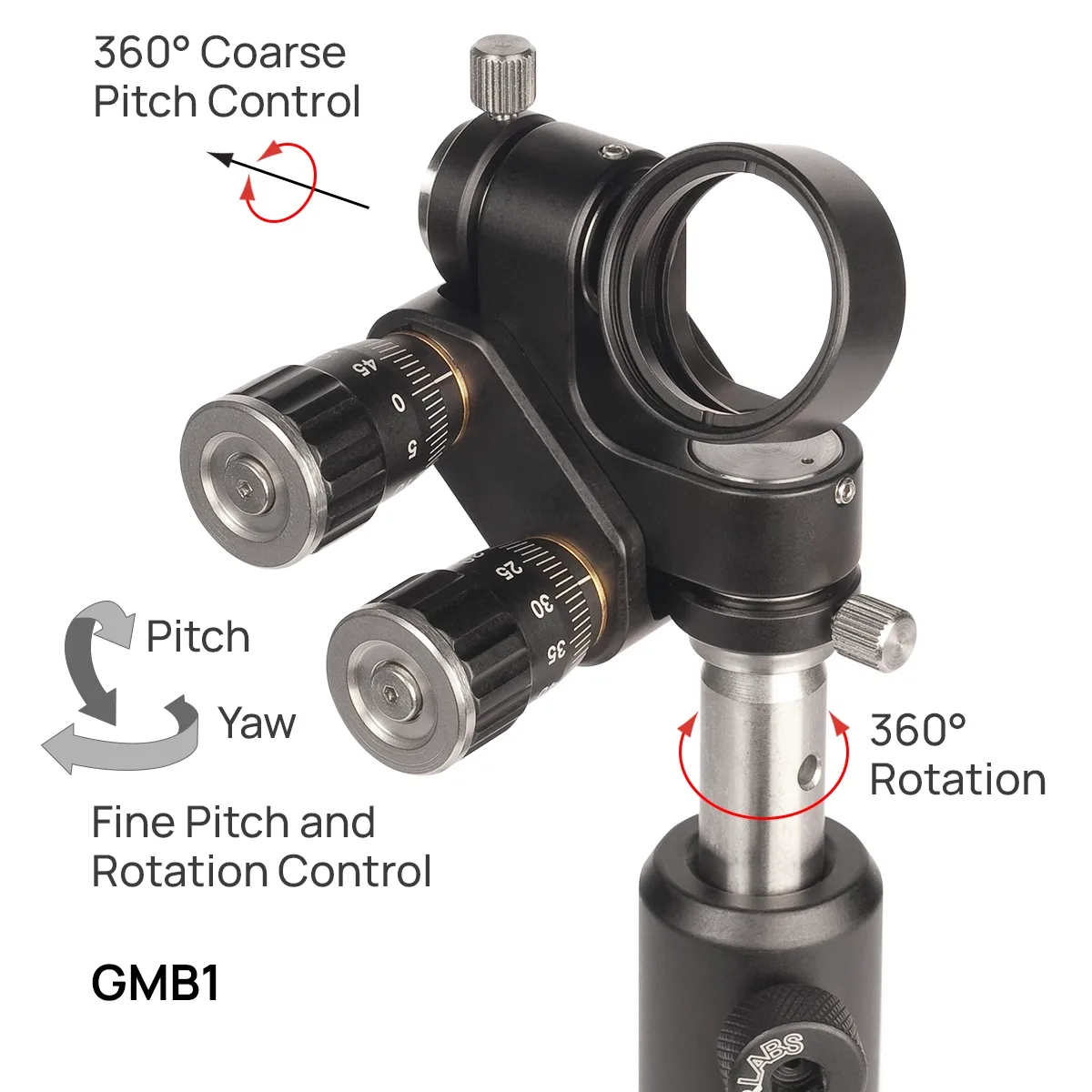

| GMB1 | coarse 360 degree adjustment in both axes plus fine plus or minus 15 degree adjustment |
| Specification | KC45D1 integrates into a 30 mm cage system |
| PGM1SE piezo open-loop range | 30 mrad per axis, resolution 0.05 microradians |
| PGM1SE closed-loop range | 20 mrad, resolution 0.14 microradians |
| Body material | black anodised aluminium |
