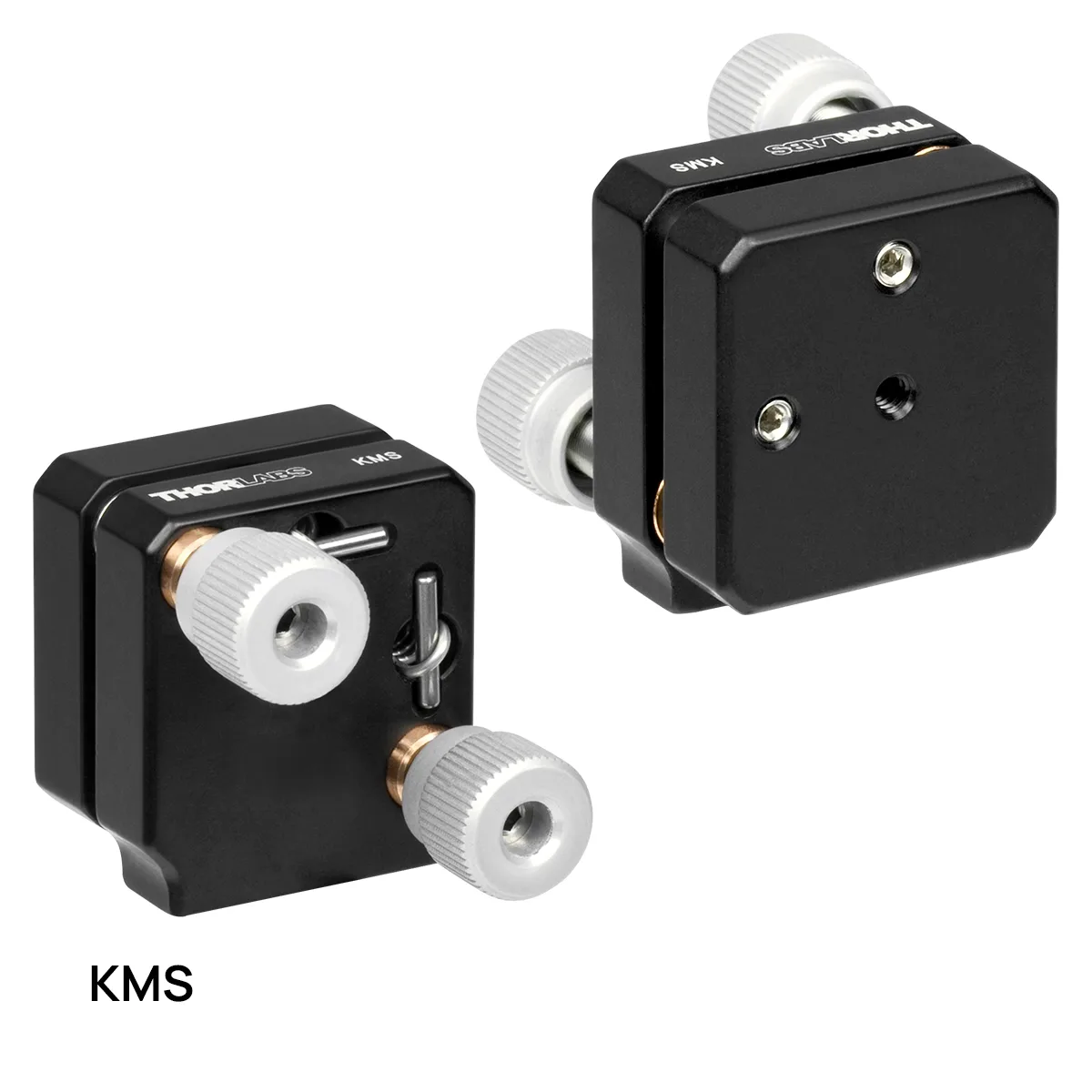

Compact Kinematic Mounts (KMS, KMSS and QM1)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Small footprint kinematic mirror mounts for optical systems where space is tight. The KMS uses removable knobs over a hex socket and the slimmer KMSS is hex driven only, both taking mirror holders for half inch or one inch optics.
Technical Specifications
| Parameter | Value |
|---|---|
| Angular displacement range | plus or minus 4 degrees |
| Adjustment | 15 mrad per revolution |
| Adjuster drive | 5/64" hex socket |
| Specification | Two 8-32 (M4) tapped holes on the bottom and back for post mounting |
| Specification | 4-40 tapped hole on the front for MH12, MH25 and MH25T mirror holders |
| Body material | black anodised aluminium |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
