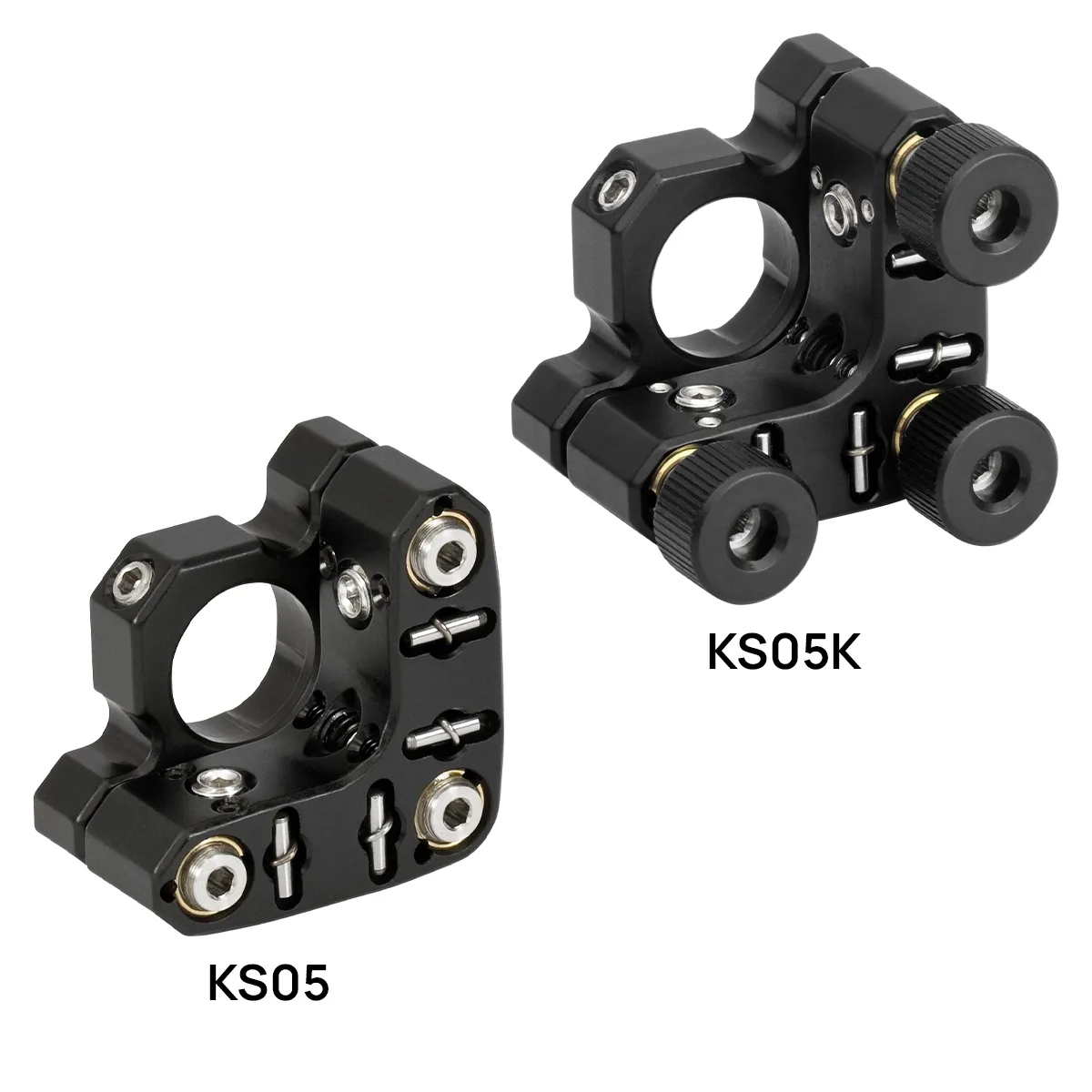

Precision Kinematic Mirror Mounts (KS Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Three adjuster kinematic mirror mounts with a thicker back plate and stiffer springs than the standard two adjuster design. Sizes cover half inch to 4 inch optics, with lockable and differential adjuster versions for beam steering that must hold alignment over long periods.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Mounts for 1/2", 1", 2", 3" and 4" diameter optics |
| Angular adjustment | plus or minus 4 degrees of pitch and yaw |
| Specification | Three adjusters with hex socket or removable knob drive |
| KS1 resolution | 7.4 mrad per revolution, 1/4"-80 adjuster thread |
| KS05 resolution | 12.8 mrad per revolution, 3/16"-100 adjuster thread |
| Specification | Mounting holes at 90 degrees for left-handed or right-handed operation |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
