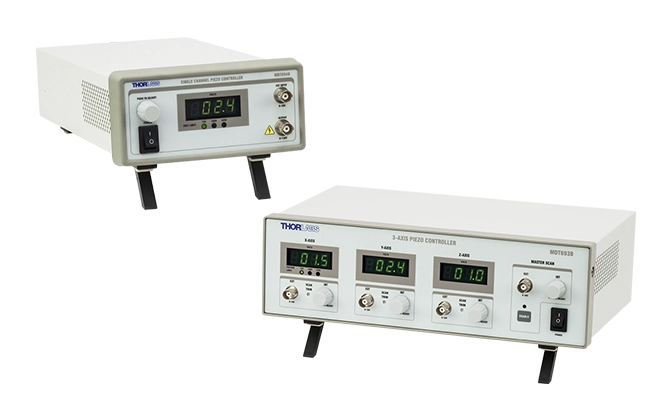

MDT693B and MDT694B Open-Loop Piezo Controllers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Low noise voltage sources for driving piezoelectric actuators and stacks, in one and three channel versions. The maximum output can be limited by a rear switch to protect low voltage piezos, and BNC input allows external modulation.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of channels | 1 (MDT694B) or 3 (MDT693B) |
| Output voltage | 0 to 75 V, 0 to 100 V or 0 to 150 V, switch selected |
| Output voltage resolution using knobs | 1.1 mV at the 75 V setting |
| Maximum output current | 60 mA |
| Output noise | 1.5 mV RMS, about 9.9 mV peak to peak |
| Bandwidth | 9 kHz no load small signal; external control input 0 to 10 V |
