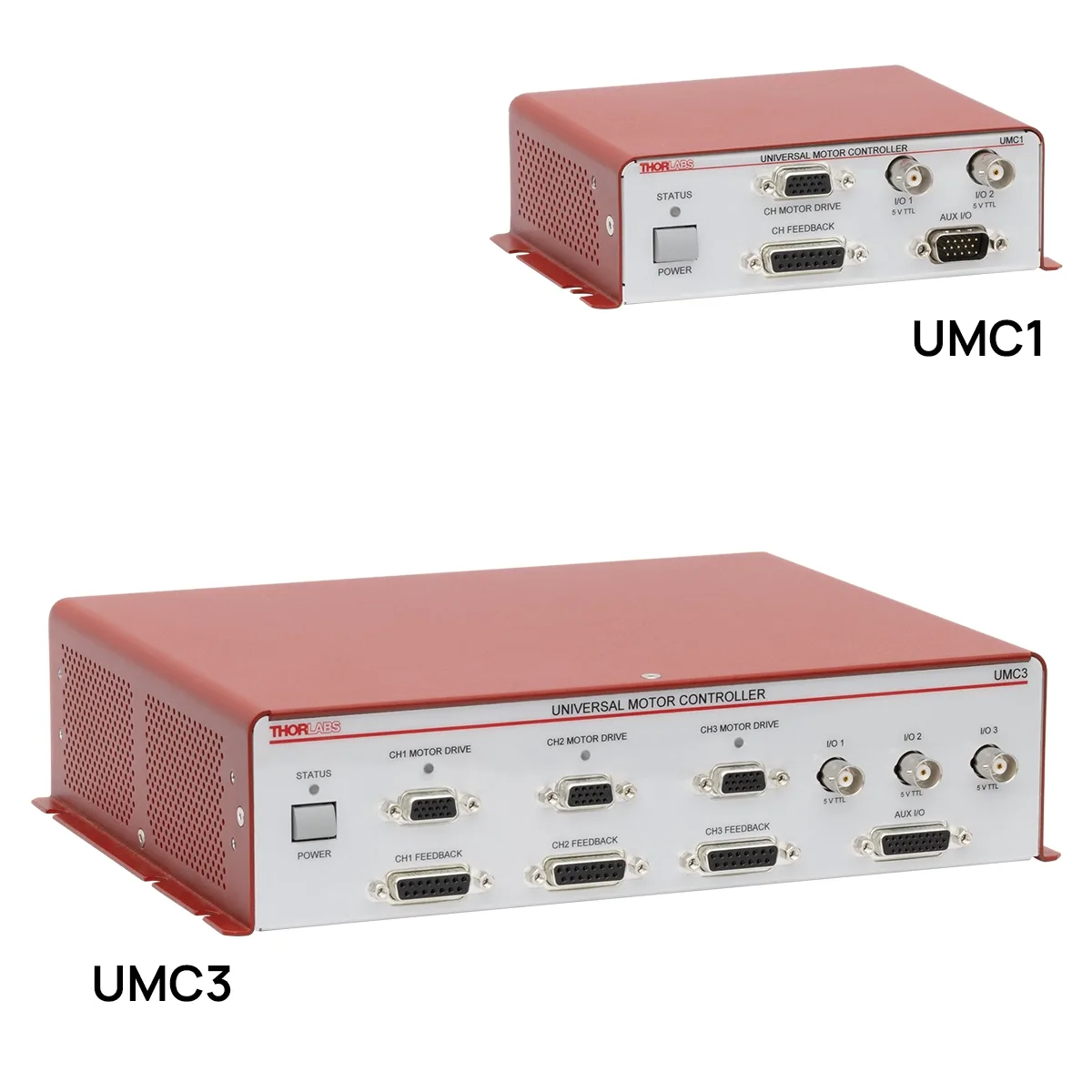

UMC Series Universal Motor Controllers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Benchtop controllers in one, two and three channel versions that drive both brushless DC and stepper motor stages with encoder feedback. They run from a PC over USB or Ethernet, from a joystick, or from the XA software suite.
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 1 (UMC1), 2 (UMC2) or 3 (UMC3) |
| Continuous output | 2.5 A per channel, 4 A maximum all-channel total |
| Peak output | 4.0 A per channel |
| Control algorithm | 16-bit digital PID servo loop with velocity and acceleration feedforward |
| Position feedback | incremental encoder, 2.5 MHz bandwidth |
| Connectivity | USB 2.0 Type-B and Ethernet |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
