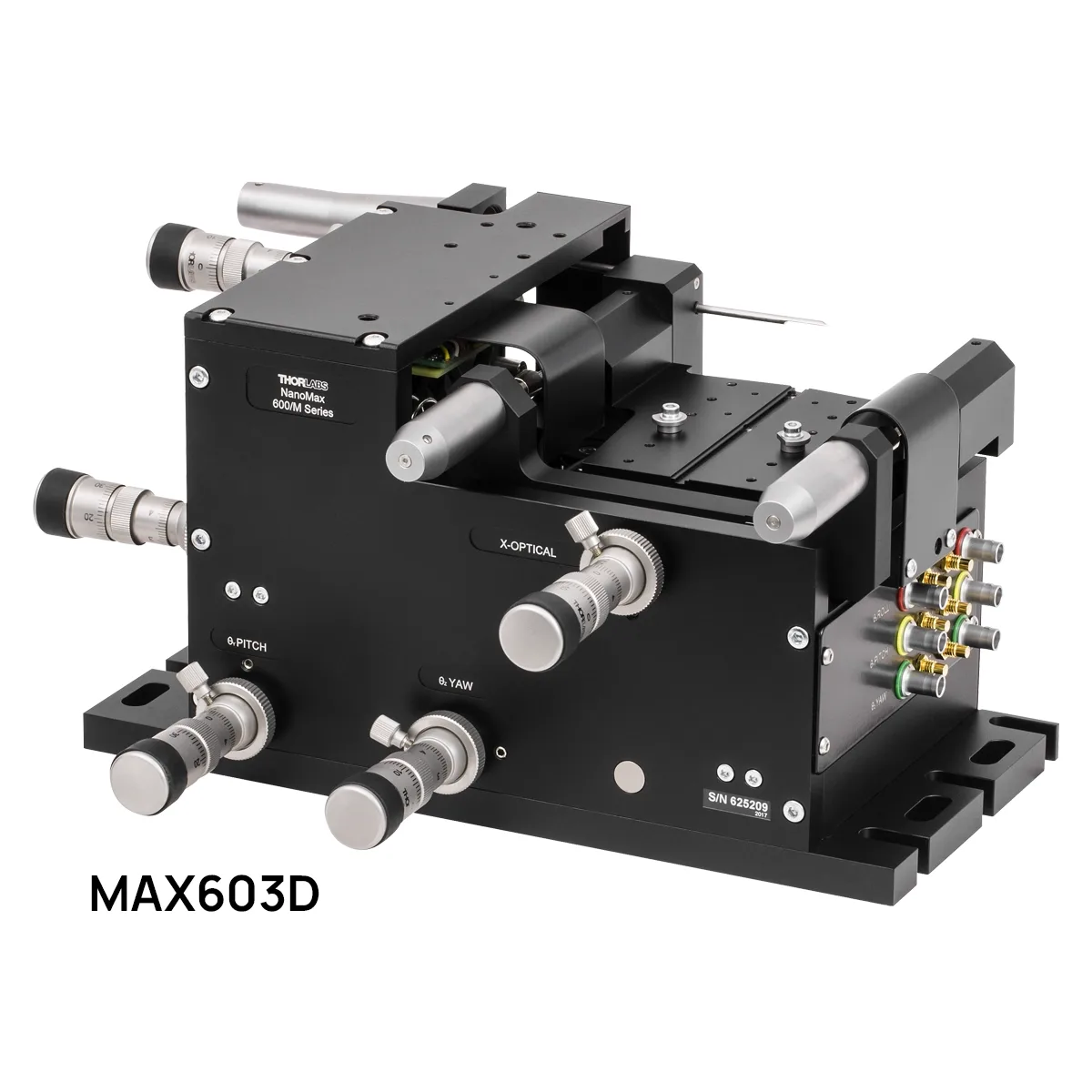

6-Axis NanoMax NanoPositioning Flexure Stages (MAX600 Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Parallel flexure stages that give six independent degrees of freedom about a common pivot point, which simplifies alignment and reduces crosstalk. Micrometer, stepper and piezo drive options cover coarse travel down to nanometre steps.
Technical Specifications
| Parameter | Value |
|---|---|
| Travel | 4 mm in X, Y and Z; 6 degrees (105 mrad) in pitch, yaw and roll |
| Deck height | 112.5 mm; optical axis height 125 mm |
| Maximum load capacity | 1 kg (2.2 lbs) |
| RMS repeatability | 30 nm over 30 micrometres |
| Stiffness | 1 N per micrometre in X and Z, 0.5 N per micrometre in Y |
| Specification | Internal piezo travel 30 micrometres at 0 to 75 V; resonant frequency above 130 Hz |
