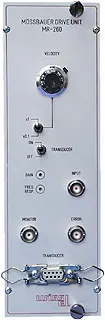

MR-260 Mossbauer Drive Unit
Brand: WissEl | Category: Nanotechnology
A basic Mossbauer drive unit that forms a complete drive system with any WissEl velocity transducer. It accepts any waveform from a WissEl digital function generator and sets maximum velocity from a front panel ten turn potentiometer.
Technical Specifications
| Parameter | Value |
|---|---|
| Velocity range | 0 to approximately 300 mm/s with standard springs |
| Accuracy | 0.05 per cent in sinusoidal mode at the resonance frequency |
| Linearity | better than 0.15 per cent up to 100 mm/s |
| Temperature shift of the velocity | less than 10-4 per deg C |
| Analogue input | 0 to 20 Vpp |
| Specification | Double width NIM module, weight approximately 0.9 kg |
