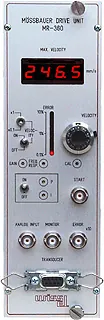

MR-360 Mossbauer Drive Unit
Brand: WissEl | Category: Nanotechnology
A Mossbauer drive unit with error minimisation and a three and a half digit display of maximum velocity. The display is calibrated against a Mossbauer calibration measurement using a front panel adjustment screw, and an LED bar shows the relative error.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating frequency range | approximately 1 to 100 Hz |
| Maximum velocity display | 0.01 to 1999 mm/s |
| Error display | LED line, logarithmic scale from 0.1 to 10 per cent |
| Analogue input | 1 to 12 Vpp, start input 2 to 20 V |
| Monitor output | approximately 40 mV per mm/s with MA-260S or MVT-1000 |
| Specification | Double width NIM module, weight approximately 1.2 kg |
