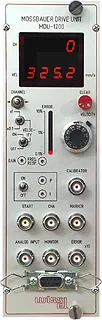

MDU-1200 Mossbauer Drive Unit
Brand: WissEl | Category: Nanotechnology
The top drive unit in the WissEl range, with laser based calibration. Connected to the MVC-450 calibrator it displays the velocity and channel number for each channel, and an internal microcomputer performs the channel to velocity conversion.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating frequency range | approximately 1 to 100 Hz |
| Displays | 4-digit velocity display and 4-digit channel number display |
| Error display | LED line, logarithmic scale from 0.1 to 10 per cent |
| Analogue input | 1 to 12 Vpp |
| Monitor output | approximately 40 mV per mm/s with MA-260S or MVT-1000 |
| Specification | Serial output for transfer of velocity data to a personal computer |
