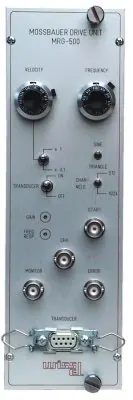

MRG-500 Mossbauer Drive Unit
Brand: WissEl | Category: Nanotechnology
A Mossbauer drive unit with a built-in digital function generator, designed for the MA-260 and MVT-1000 transducers. It supplies sine and triangle reference waveforms and digital start and channel advance pulses to synchronise a multichannel analyser.
Technical Specifications
| Parameter | Value |
|---|---|
| Waveforms | sine and triangle (constant acceleration) |
| Frequency range | 1 to 50 Hz, set by front panel ten turn potentiometer |
| Channel selection | 512 or 1024 channels |
| Monitor output | approximately 30 mV per mm/s |
| Start and channel advance pulses | approximately 5 V, 1 us, 50 ohm |
| Specification | Double width NIM module, weight 1.2 kg |
