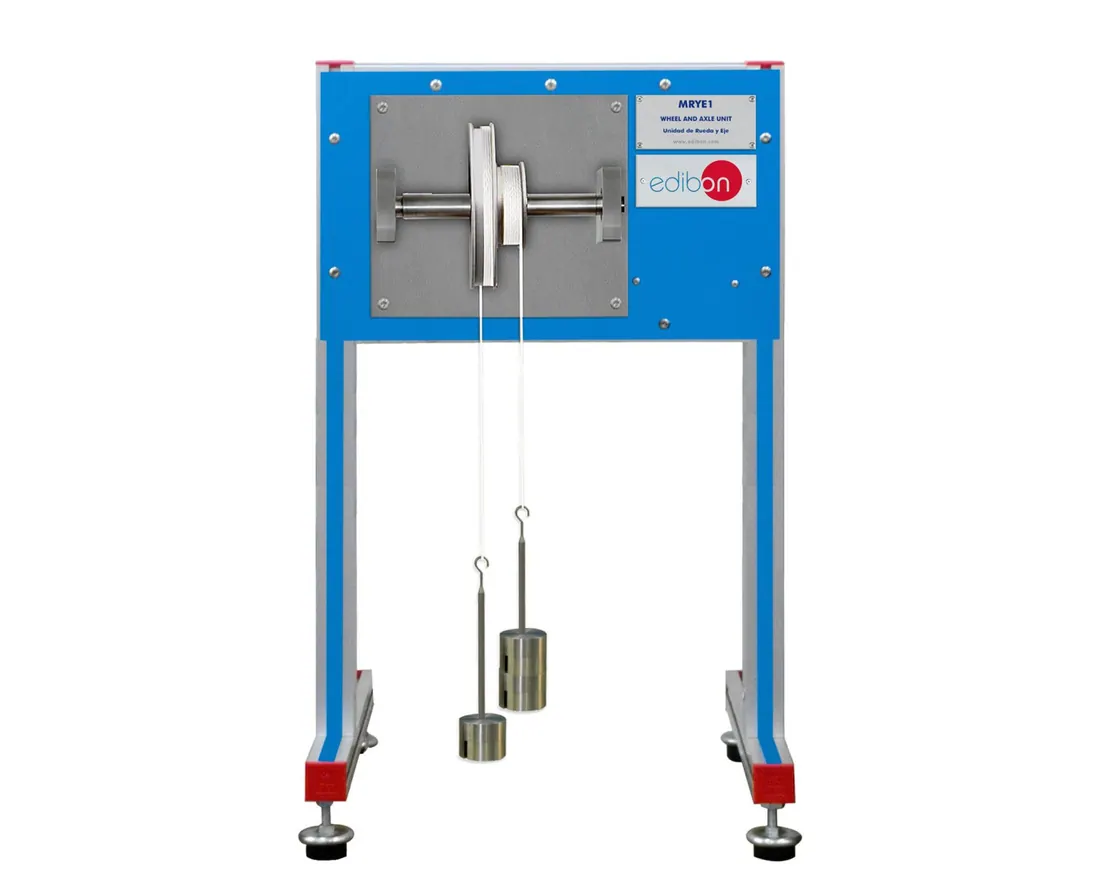

MRYE1: Wheel and Axle Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MRYE1 demonstrates the wheel and axle as a simple machine. Load and effort cords are wound on two drums of different diameter fixed to a common shaft, so mechanical advantage, velocity ratio and efficiency can be measured in introductory statics teaching.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 400 x 400 x 800 mm approx |
| Weight | 22 Kg approx |
| Specification | Two pulleys (wheels) pulley no.1 diameter = 150 mm |
| Specification | Two pulleys (wheels) pulley no.2 diameter = 75 mm |
