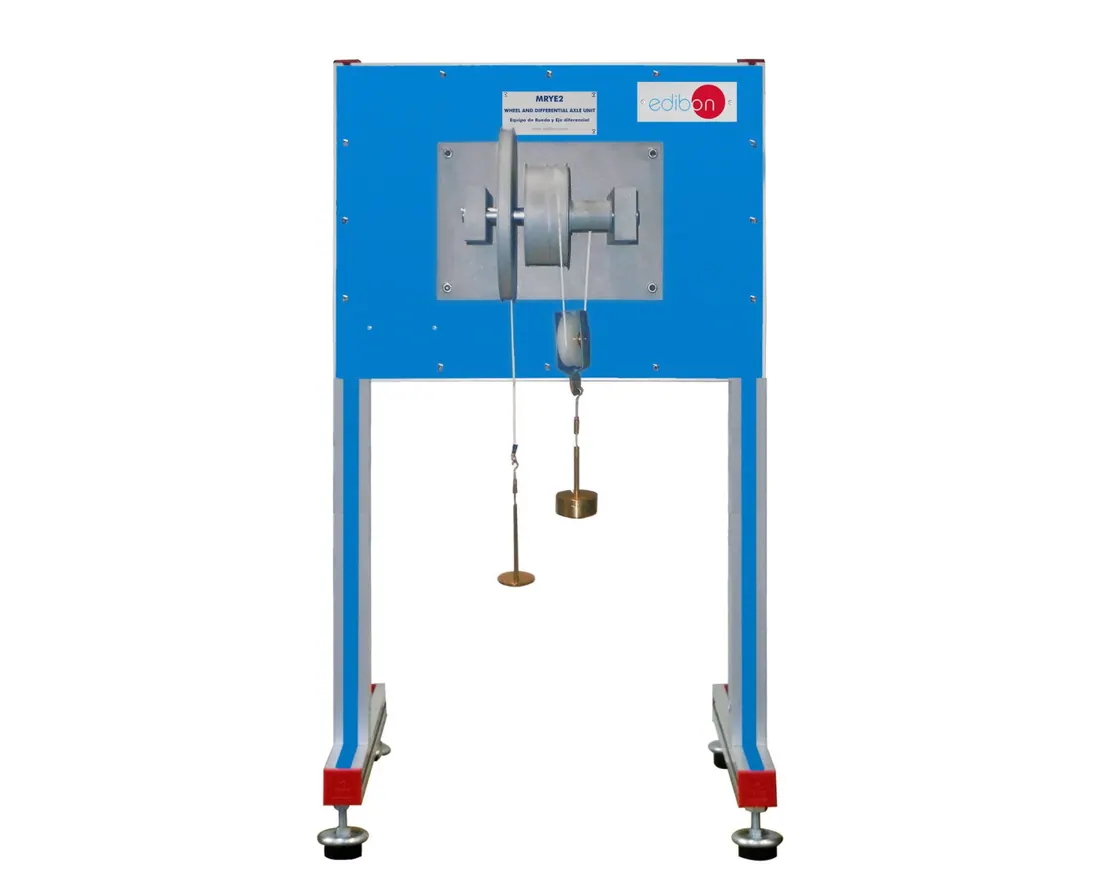

MRYE2: Wheel and Differential Axle Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MRYE2 extends the wheel and axle experiment to a differential axle with two drums of different diameter on one shaft. Students measure effort against load to obtain the velocity ratio, mechanical advantage and efficiency of the arrangement.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 510 x 355 x 940 mm approx |
| Weight | 20 Kg approx |
| Specification | Wheel, composed of a pulley with a diameter of 194 mm |
| Diameter no. 1 (larger axle) | 111 mm |
| Diameter no. 2 (smaller axle) | 33 mm |
