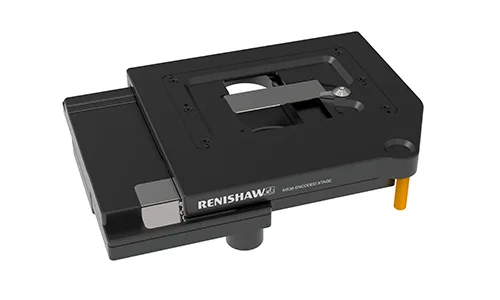

MS30 high speed encoded stage
Brand: Renishaw | Category: Nanotechnology
The MS30 high speed encoded stage (HSES) moves a sample under the Raman microscope with step sizes down to 50 nm, driven by proprietary direct drive DC motors with novel control algorithms that stay quiet and controlled even over large distances. Its travel range of 112 mm × 76 mm allows several samples to be studied in one session, and it returns to the same XY position to within ±0.35 µm, which matters when revisiting particles smaller than 1 µm such as microplastics, pharmaceutical ingredients, cement powders and electrode powders. Renishaw's patented EasyMove stage system suspends motorisation when the stage is pulled forward for loading and resumes it when released, with the encoders tracking position throughout. The stage is offered with the inVia confocal Raman microscope, the RA802 pharmaceutical analyser and the RA816 biological analyser, and options include a sampling accessory kit and an ANSI/SLAS microplate holder.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| XY travel | 112 × 76 mm |
| XY step size | Down to 50 nm |
| XY positioning repeatability | ±0.35 µm |
| Optional MZ20 Z drive | Step size down to 8 nm |
Selected Renishaw manufacturer data. Confirm the exact hardware revision and configured optics, controller and software. Example spectra and sample experiments are not universal instrument specifications. Checked 2026-09-29.
