MZ40 Z stage
Brand: Renishaw | Category: Nanotechnology

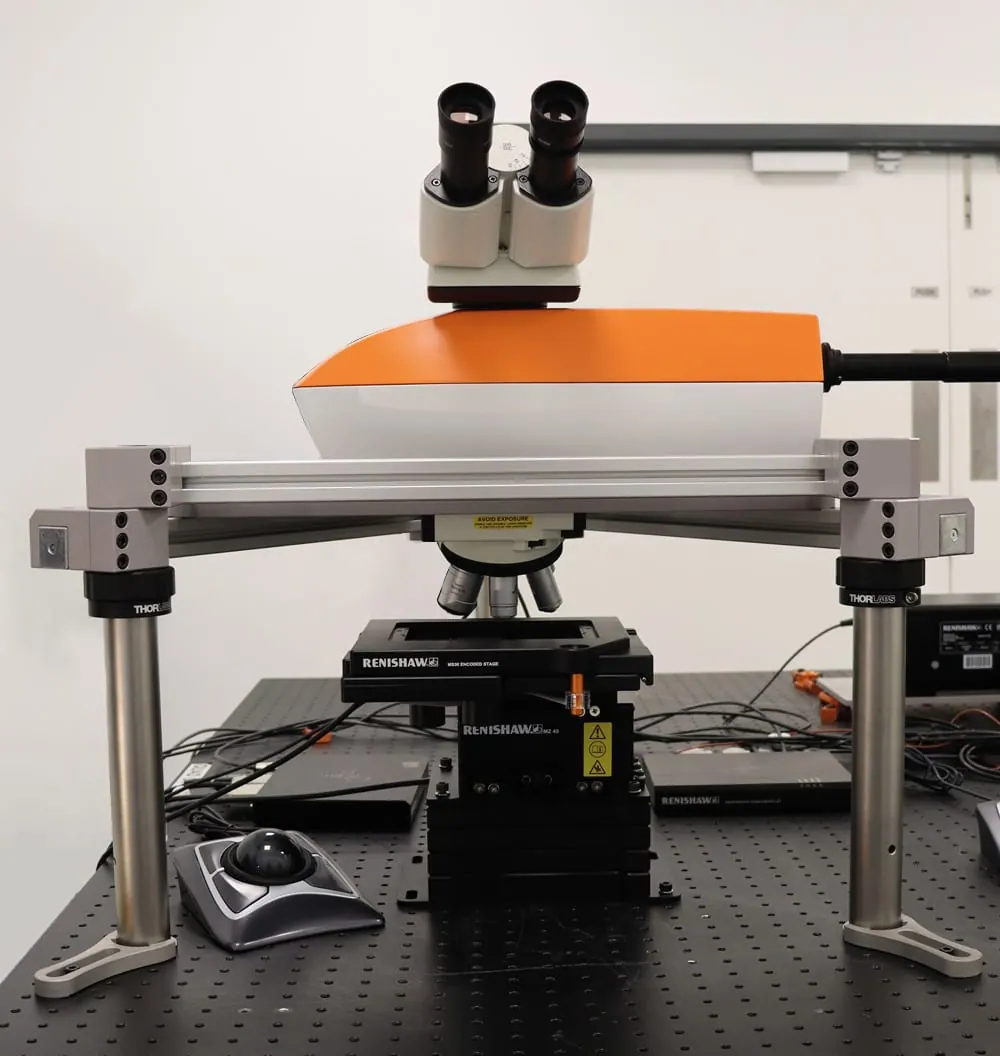

The MZ40 Z stage handles precise vertical movement of large and heavy samples, with a load capacity of up to 25 kg and encoded step sizes down to 100 nm. It can be used with a Virsa Raman analyser or with a free-space inVia confocal Raman microscope, and Renishaw can configure it alongside a motorised XY stage for accurate positioning in all three dimensions. Typical samples include semiconductor wafers, geological material such as rock cores, artworks and cultural heritage items, and samples held in heavy environmental chambers including cryostats.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Maximum load | 25 kg |
| Encoded step size | Down to 100 nm |
| Listed configurations | Virsa Raman analyser or free-space inVia microscope |
Selected Renishaw manufacturer data. Confirm the exact hardware revision and configured optics, controller and software. Example spectra and sample experiments are not universal instrument specifications. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Exact host instrument/model and intended experiment
- Mechanical, electrical, optical or material compatibility as applicable
- Required dimensions/range, connectors, included parts and quantity
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Renishaw equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
