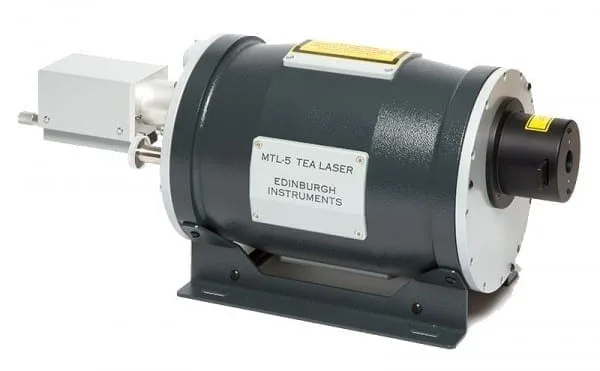

MTL-5: Mini-TEA CO2 Laser
Brand: Edinburgh Instruments | Category: Nanotechnology
Transversely excited atmospheric pressure carbon dioxide laser delivering pulses of about 50 nanoseconds at up to 100 Hz. It is available untuned for maximum energy or tuned for line selection between 9.2 and 10.8 micrometres, in multimode or TEM00 beam quality.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Untuned wavelength | Approximately 10.6 µm |
| Tuned wavelength range | 9.2–10.8 µm |
| Typical pulse width | Approximately 50 ns FWHM |
| Repetition rate | Single shot to 100 Hz |
Selected manufacturer data. Wavelength, pulse mode, gas fill, optical alignment and connected spectrometer must match the selected configuration; pulse-source data must not be applied to a continuous-wave lamp. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Edinburgh Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
