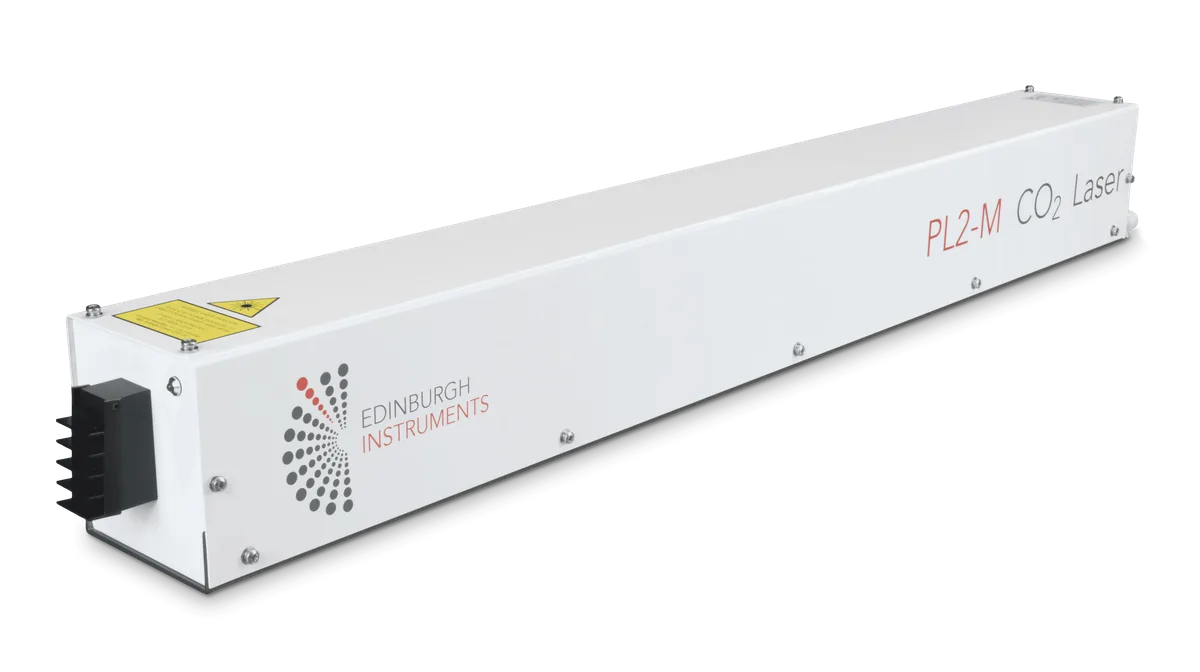

PL Series: CO and CO2 Gas Lasers
Brand: Edinburgh Instruments | Category: Nanotechnology
Continuous wave carbon dioxide and carbon monoxide gas lasers, from the 1 W sealed PL2-S up to the 180 W flowing gas PL6. Line selection ranges from 50 to 90 lines depending on model, and active stabilisation holds frequency to within a few megahertz over ten minutes. They are used in spectroscopy, non-linear optics, LIDAR and interferometry.
Manufacturer configuration comparison
| Parameter | Value |
|---|---|
| Separate PL3 CO model | 5.2–6.0 µm; sealed output power 1 W |
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Model Name | PL2-S | PL2-M | PL3 CO2 | PL5 | PL6 |
|---|---|---|---|---|---|
| Output Power - flowing (W) | - | - | - | 50 | 180 |
| Output Power - sealed (W) | 1 | 10 | 20 | - | - |
| Number of Lines | 50 | 60 | 80 | 80 | 90 |
| M2 | 1.25 | 1.25 | 1.35 | 1.25 | 1.50 |
| Beam Divergence - 1/e2 (mrad) | <7.5 | <6.5 | 3.5 | 3.5 | 3.5 |
| Beam Diameter - 1/e2 (mm) | 4.0 | 4.8 | 7.5 | 7.5 | 11.0 |
Manufacturer catalogue checked 2026-09-29.
CO₂ model columns and the separate PL3 CO option must not be combined. Sealed and flowing-gas power ratings describe different operating arrangements. Confirm the exact model, gas supply and optical configuration.
